Steel Construction China CNC High Speed Beam Drilling Machine Gantry Movable For Large Beam Steel

Place of Origin China
Brand Name FAST
Certification ISO9001
Model Number HBD1210
Minimum Order Quantity 1 set
Price USD 90000~10000/ set
Packaging Details Film; plywood wooden cases
Delivery Time 40~60days
Payment Terms L/C, T/T
Supply Ability 300sets/year
Product Details
Condition New Port Qingdao Port
Warranty 12 Months Voltage 380V
H-beam Max. Web Weight*Max. Flange Height (mm) 1200*1000 Max. Workpiece Length(mm) 12/18
Application Drilling On H Beam Max. Web Thickness (mm) ≤50
Max. Drilling Diameter (mm) Φ50 Feeding Speed (mm/min) 20~200
You can tick the products you need and communicate with us in the message board.
Name Specification
Color Black & White
Controlling System Language English (Option:Russia)
Leave a Message
Name Specification
Product Description

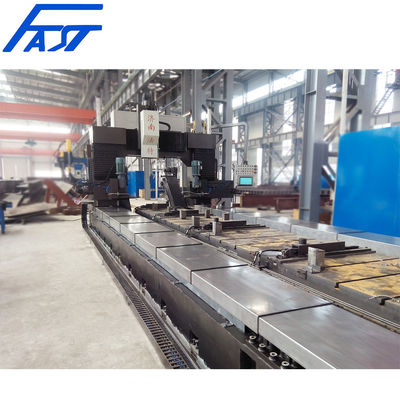

Steel Construction China CNC High Speed Beam Drilling Machine Gantry Movable For Large Beam Steel

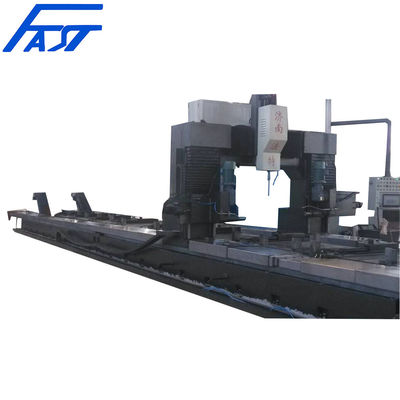

Steel Construction China CNC High Speed Beam Drilling Machine Gantry Movable For Large Beam Steel 0

APPLICATION

This machine is used in the drilling of bridges, profile steels and flat plates in bridge engineering, water conservancy and port engineering, offshore oil drilling platforms, heavy steel structures and other industries.



FEATURES

  • Integrated machine with mechanical, electrical and hydraulic elements;
  • H-beam steel or box beams are directly placed on the supporting platform.There are several horizontal T-slots to fix the workpiece on the platform;
  • The gantry moves longitudinally on the base, guided by the heavy-duty linear rolling. Guides are installed on the bases on both sides.driven. Servo motor driving, precision reducer and rack &pinion. The gantry is equipped with a hydraulic locking system;
  • Three CNC-feeding sliding drilling power heads are installed on the moving gantry, which are used for drilling large-size H-beam steel or box beams;
  • The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
  • There are positioning cylinders on the upper and lower raceways to ensure the accuracy of drilling;
  • There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
  • The main electrical control components and hydraulic and pneumatic components are imported accessories;
  • Providing G-code software program that can directly convert CAD graphics into executable machine ;
  • Graph display of processed parts;
  • With fault self-diagnosis function.



COMPOSITION

Left and right grantry base Movable gantry
Workpiece support platform Drilling power heads
Automatic chip conveyor Cooling system
Electric control system Hydraulic station
Automatic lubrication system


TECHNICAL DATA

Model HBD1210 HBD1812 HBD3020
H-beam Max. Web Weight*Max. Flange Height (mm) 1200*1000 1800*1200 3000*2000
Max. Workpiece Length(mm) 12/18
Max. Web Thickness (mm) ≤50
Max. Drilling Diameter (mm) Φ50
Feeding Speed (mm/min) 20~200
NO. of Spindle 3
Spindle motor power(kW) 3*7.5
Rotation Range of Each Spindle (r/min) 100~720
Spindle Type Morse5#
Cooling With Air Cooling System
Upper Spindle movement range (mm) 20~1180 20~1780 20~2980
Left and Right Spindle movement range (mm) 20~970 20~1170 20~1970
Marking Function(Optional) Marking Number 36
Character Size (mm) 14*10*20


All of these models can be customized according to customer requirements.
