Product Description

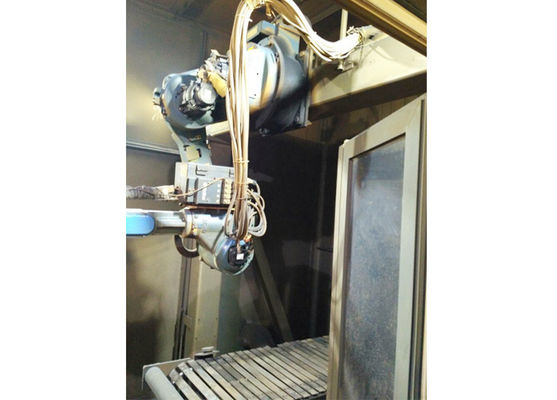

Jinan FAST CNC Cutting Line For Beam Steels, Plasma Cutting Line, CNC Machine for H Beam Steels Cutting machine

Jinan FAST CNC Cutting Line For Beam Steels, Plasma Cutting Line, CNC Machine for H Beam Steels Cutting machine 0

APPLICATION

This machine is used for cutting H-shape steels, shape steels, U-shape steels, square tubes, box beams and channel steels by Plasma Power. This machine is used in the field of steel structure, bridge, three dimensional garage and petrol platform.



COMPOSITION

This machine is composed of loading roller, CNC trolley, pressing positioning unit, manipulator (including fixed support), movable overturn offloading roller, plasma cutting system, controlling system, and smoking-cut purification system.



FEATURES

  • This machine adopts USA Hyperthermia HPR260XD plasma power, Max. Current 260A, Max. Opening hole thickness is 32mm, Max. Cutting thickness is 65mm.
  • German Igus high software cables.
  • CNC adopts robot-controlling system.
  • This machine can do off-line programing.
  • CAD flies can exchange to cutting programs directly.

TECHNICAL DATA

Model RC1730
Cutting Steel Sectional Range Square Tube 60*80~400*400
shape Steel 200*100~320*132
U-shape Steel 65*40~32*90
Angle Steel 63*63~200*125
H-shape Stell 100*100~580~300
Steel Cutting Length(m) 12
Plasma Power Max. Current (A) 260
Opening Holes Thickness (mm) 32
Max. Cutting Thickness (mm) 65
