1200 FASTCNC Steel Structure H Beam High Speed CNC Channel Steel Drilling Machine

  • 1200 FASTCNC Steel Structure H Beam High Speed CNC Channel Steel Drilling Machine
  • 1200 FASTCNC Steel Structure H Beam High Speed CNC Channel Steel Drilling Machine
  • 1200 FASTCNC Steel Structure H Beam High Speed CNC Channel Steel Drilling Machine
  • 1200 FASTCNC Steel Structure H Beam High Speed CNC Channel Steel Drilling Machine
  • 1200 FASTCNC Steel Structure H Beam High Speed CNC Channel Steel Drilling Machine
  • 1200 FASTCNC Steel Structure H Beam High Speed CNC Channel Steel Drilling Machine
Place of Origin Jinan China
Brand Name FAST CNC
Certification ISO9001
Model Number SWZ1200
Minimum Order Quantity 1 Set
Price USD 100000~108000/Set
Packaging Details Film
Delivery Time 40~60days
Payment Terms L/C, T/T, Western Union
Supply Ability 300Sets/Year
Product Details
Condition New CNC Or Not CNC
Voltage 380V Key Selling Points Automatic
Applicable Industries Building Material Shops, Manufacturing Plant Video Outgoing-inspection Provided
Core Components Pump, Motor, Gearbox Power Three Phase Four Wire System
Fluctuation Of Voltage ±10% Warranty 1 Year
Type Drilling & Milling Machine Machinery Test Report Provided
Leave a Message
Product Description

1200 FASTCNC Steel Structure H Beam High Speed CNC Channel Steel Drilling Machine

1200 FASTCNC Steel Structure H Beam High Speed CNC Channel Steel Drilling Machine 0

APPLICATION

This machine is special equipment for drilling H-beam, channel steel , box beam and angle steel in steel structure, bridge, three-dimensional parking garage, petroleum platform and other industries.



FEATURES

  • Integrated machine with mechanical, electrical and hydraulic elements;
  • This machine has three power heads. All holes on the three sides of the workpiece can be processed in one pass;
  • There is no need to set thickness of the workpiece and length of the drill bit. The fast forward and work forward conversion are automatically carried out. The processing efficiency is high;
  • The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
  • The CNC feeding trolley is driven by a servo motor with high positioning accuracy;
  • There are positioning cylinders on the upper and lower raceways to ensure the accuracy of drilling;
  • There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
  • The main electrical control components and hydraulic and pneumatic components are imported accessories;
  • Providing G-code software program that can directly convert CAD graphics into executable machine ;
  • Graph display of processed parts;
  • With fault self-diagnosis function.



COMPOSITION

Horizontal storage rack Workpiece lifting and handling trolley (transferred from the material rack to the feeding side raceway)
CNC Infeeding Trolley CNC trolley running track
Loading side power raceway Three-dimensional drilling unit
Offloading side power raceway Side pusher system
Automatic chip conveyor Mist cooling system

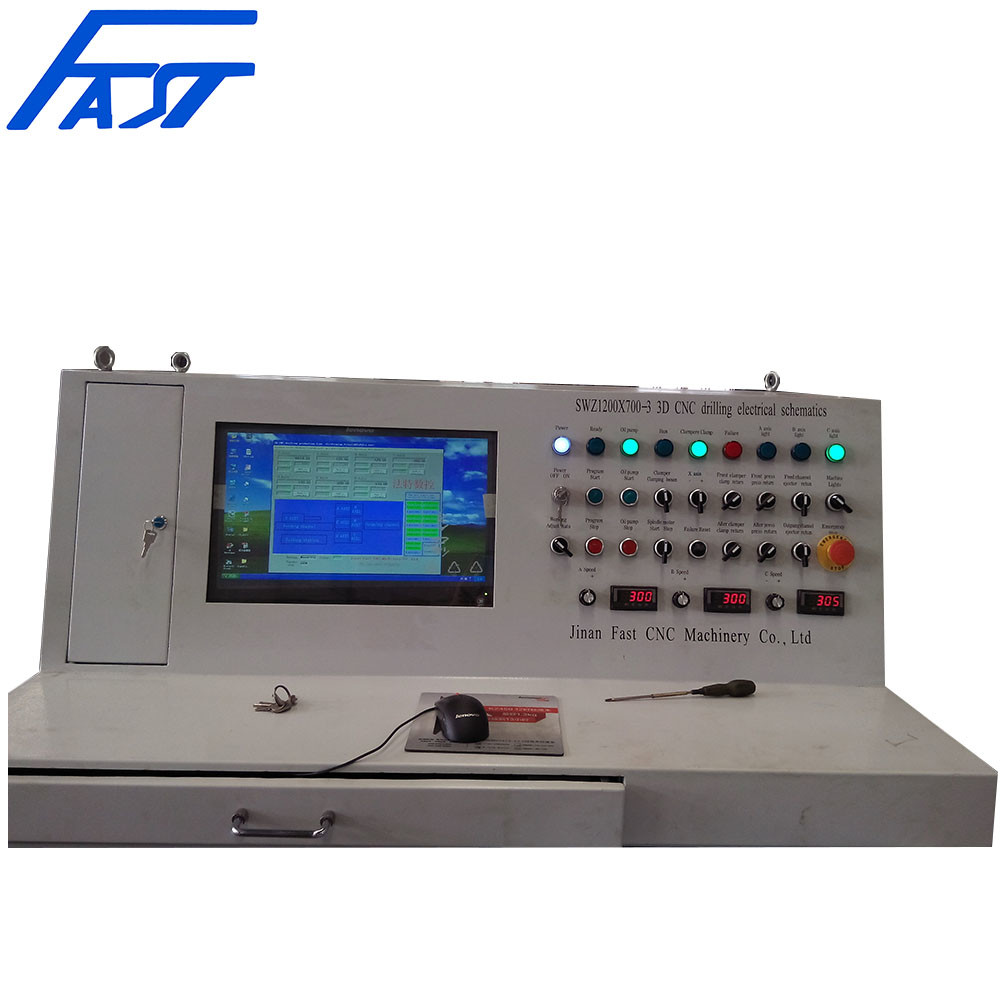

Electric control cabinet Hydraulic station



TECHNICAL DATA

Model SWZ700-3 SWZ1000-3 SWZ1250-3
H-beam Max. Web Weight *Max. Flange Height (mm) 700*400 1000*500 1250*600
H-beam Min. Web Weight *Min. Flange Height (mm)



150*100
Automatic Feeding Length (mm)



2000~14000
Max. Web Thickness (mm) ≤60
Max. Drilling Diameter (mm) Φ40
Feeding Speed (mm/min) 20~200
NO. of Spindle 3
Rotation Range of Each Spindle (r/min) 100~700
Spindle Type Morse 4#
No. of CNC Axis 4
Upper Spindle Movement Range (mm) 40~660 40~960 40~1160
Left and Right Spindle movement range (mm) 30~370 30~470 30~570
Marking Function(Optional) Marking Number 36
Character Size (mm) 14*10*20
Total Power (kW) 30 31 34
Overall Dimension L*W*H (m) 29*4.2*3.1 33*4.5*3.1 34*5*3.1
