Powerful 3-Spindle CNC H-Beam Drilling Machine For Steel Structure Model SWZ1250-3 Exported To Tunisia

I'm Online Chat Now
Certification
China Jinan FAST CNC Machinery Co., Ltd certification
China Jinan FAST CNC Machinery Co., Ltd certification
To:Jinan FAST CNC Machinery PLC Dear Sir, With the letter we would like to thank for your cooperation in the successful installation, testing and commissioning of High Speed CNC Drill Of First in its kind Ethiopia , that would enable us do many works especially sugar product tube plate holes of various deameters and thickness. ... With Regards

—— Mr. Begall

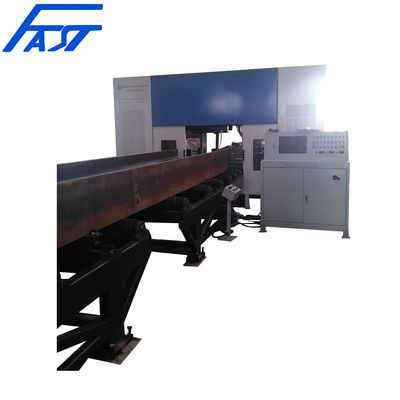

Powerful 3-Spindle CNC H-Beam Drilling Machine For Steel Structure Model SWZ1250-3 Exported To Tunisia

Powerful 3-Spindle CNC H-Beam Drilling Machine For Steel Structure Model SWZ1250-3 Exported To Tunisia
Powerful 3-Spindle CNC H-Beam Drilling Machine For Steel Structure Model SWZ1250-3 Exported To Tunisia Powerful 3-Spindle CNC H-Beam Drilling Machine For Steel Structure Model SWZ1250-3 Exported To Tunisia Powerful 3-Spindle CNC H-Beam Drilling Machine For Steel Structure Model SWZ1250-3 Exported To Tunisia Powerful 3-Spindle CNC H-Beam Drilling Machine For Steel Structure Model SWZ1250-3 Exported To Tunisia Powerful 3-Spindle CNC H-Beam Drilling Machine For Steel Structure Model SWZ1250-3 Exported To Tunisia Powerful 3-Spindle CNC H-Beam Drilling Machine For Steel Structure Model SWZ1250-3 Exported To Tunisia

Large Image :  Powerful 3-Spindle CNC H-Beam Drilling Machine For Steel Structure Model SWZ1250-3 Exported To Tunisia Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: SWZ1000-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 100000~120000/ Set
Packaging Details: FILM; Plywood Pallet
Delivery Time: 40days
Payment Terms: L/C, T/T
Supply Ability: 300sets/year
Detailed Product Description
Condition: New CNC Or Not: CNC
H-beam Max. Web Weight *Max. Flange Height (mm): 1250*600 H-beam Min. Web Weight *Min. Flange Height (mm): 150*100
Automatic Feeding Length (mm): 2000~14000 Max. Drilling Diameter: Φ40
Overall Dimension L*W*H (m): 34*5*3.1 Total Power (kW): 34
Marking Function(Optional) Marking Number: 36 Spindle Type: Morse 4#

 3-Spindle CNC H-Beam Drilling Machine For Steel Structure Model SWZ1250-3

Powerful 3-Spindle CNC H-Beam Drilling Machine For Steel Structure Model SWZ1250-3 Exported To Tunisia 0

APPLICATION

This machine is special equipment for drilling H-beam, channel steel , box beam and angle steel in steel structure, bridge, three-dimensional parking garage, petroleum platform and other industries.



FEATURES

  • Integrated machine with mechanical, electrical and hydraulic elements;
  • This machine has three power heads. All holes on the three sides of the workpiece can be processed in one pass;
  • There is no need to set thickness of the workpiece and length of the drill bit. The fast forward and work forward conversion are automatically carried out. The processing efficiency is high;
  • The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
  • The CNC feeding trolley is driven by a servo motor with high positioning accuracy;
  • There are positioning cylinders on the upper and lower raceways to ensure the accuracy of drilling;
  • There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
  • The main electrical control components and hydraulic and pneumatic components are imported accessories;
  • Providing G-code software program that can directly convert CAD graphics into executable machine ;
  • Graph display of processed parts;
  • With fault self-diagnosis function.



COMPOSITION

Horizontal storage rack Workpiece lifting and handling trolley (transferred from the material rack to the feeding side raceway)
CNC Infeeding Trolley CNC trolley running track
Loading side power raceway Three-dimensional drilling unit
Offloading side power raceway Side pusher system
Automatic chip conveyor Mist cooling system
Electric control cabinet Hydraulic station
