customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210

I'm Online Chat Now
Certification
China Jinan FAST CNC Machinery Co., Ltd certification
China Jinan FAST CNC Machinery Co., Ltd certification
To:Jinan FAST CNC Machinery PLC Dear Sir, With the letter we would like to thank for your cooperation in the successful installation, testing and commissioning of High Speed CNC Drill Of First in its kind Ethiopia , that would enable us do many works especially sugar product tube plate holes of various deameters and thickness. ... With Regards

—— Mr. Begall

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210
customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210

Large Image :  customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: HBD1210
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 90000~10000/ set
Packaging Details: Film; plywood wooden cases
Delivery Time: 40~60days
Payment Terms: L/C, T/T
Supply Ability: 300sets/year
Detailed Product Description
Condition: New Port: Qingdao Port
Warranty: 12 Months Voltage: 380V
H-beam Max. Web Weight*Max. Flange Height (mm): 1200*1000 Max. Workpiece Length(mm): 12/18
Application: Drilling On H Beam Max. Web Thickness (mm): ≤50
Max. Drilling Diameter (mm): Φ50 Feeding Speed (mm/min): 20~200

Customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 0

APPLICATION

This machine is used in the drilling of bridges, profile steels and flat plates in bridge engineering, water conservancy and port engineering, offshore oil drilling platforms, heavy steel structures and other industries.



FEATURES

  • Integrated machine with mechanical, electrical and hydraulic elements;
  • H-beam steel or box beams are directly placed on the supporting platform.There are several horizontal T-slots to fix the workpiece on the platform;
  • The gantry moves longitudinally on the base, guided by the heavy-duty linear rolling. Guides are installed on the bases on both sides.driven. Servo motor driving, precision reducer and rack &pinion. The gantry is equipped with a hydraulic locking system;
  • Three CNC-feeding sliding drilling power heads are installed on the moving gantry, which are used for drilling large-size H-beam steel or box beams;
  • The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
  • There are positioning cylinders on the upper and lower raceways to ensure the accuracy of drilling;
  • There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
  • The main electrical control components and hydraulic and pneumatic components are imported accessories;
  • Providing G-code software program that can directly convert CAD graphics into executable machine ;
  • Graph display of processed parts;
  • With fault self-diagnosis function.



COMPOSITION

Left and right grantry base Movable gantry
Workpiece support platform Drilling power heads
Automatic chip conveyor Cooling system
Electric control system Hydraulic station
Automatic lubrication system


TECHNICAL DATA

Model HBD1210 HBD1812 HBD3020
H-beam Max. Web Weight*Max. Flange Height (mm) 1200*1000 1800*1200 3000*2000
Max. Workpiece Length(mm) 12/18
Max. Web Thickness (mm) ≤50
Max. Drilling Diameter (mm) Φ50
Feeding Speed (mm/min) 20~200
NO. of Spindle 3
Spindle motor power(kW) 3*7.5
Rotation Range of Each Spindle (r/min) 100~720
Spindle Type Morse5#
Cooling With Air Cooling System
Upper Spindle movement range (mm) 20~1180 20~1780 20~2980
Left and Right Spindle movement range (mm) 20~970 20~1170 20~1970
Marking Function(Optional) Marking Number 36
Character Size (mm) 14*10*20


All of these models can be customized according to customer requirements.



DETAIL IMAGES

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 1

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 2

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 3

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 4

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 5

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 6

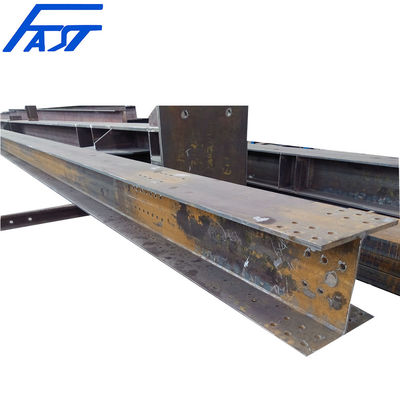

SAMPLES

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 7

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 8

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 9

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 10

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 11

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 12



customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 13

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 14

WHY CHOOSE US

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 15

COMPANY PROFILE

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 16

WORKSHOP

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 17

CUSTOMER VISIT

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 18

FAQ

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 19

CERTIFICATE

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 20

PACKING AND SHIPPING

customized CNC Gantry Moving Type Box Beam H Beam Drilling Machine For Steel Structure Model HBD1210 21
