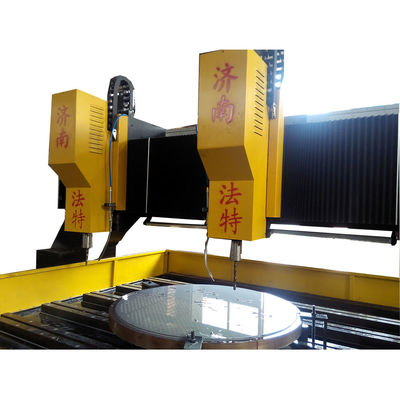

PZG2020 Custom Machine Machinery Of High Speed CNC Drilling Machine Self-Centering For Flange And Tube Sheet

Place of Origin China
Brand Name FAST
Certification ISO9001
Model Number PZ3030
Minimum Order Quantity 1set
Price USD 50000~56000/set
Packaging Details Film; plywood pallet
Delivery Time 30days
Payment Terms L/C, T/T, Western Union
Supply Ability 300sets/year
Product Details
Condition New Warranty 12 Months
Port Qingdao Port MOQ 1 SET
Service 24 Hours Online Services Voltage 380V
Certificate ISO9001 CNC Or Not CNC
Net Weight (Ton) 15 Overall Dimension L*W*H (mm) 4800*4400*2650
You can tick the products you need and communicate with us in the message board.
Name Specification
Color Black & White
Controlling System Language English (Option:Russia)
Leave a Message
Name Specification
Product Description

PZG2020 Custom Machine Machinery Of High Speed CNC Drilling Machine Self-Centering For Flange And Tube Sheet

PZG2020 Custom Machine Machinery Of High Speed CNC Drilling Machine Self-Centering For Flange And Tube Sheet 0



APPLICATION

This machine is mainly used for drilling flanges, tube sheets, baffles and gear rings in petrochemical, boiler, wind power, engineering machinery.etc. It can process through holes and blind holes on single material parts and composite materials. It can also mill pipe holes and expand pipe grooves (using special tools).Also, it can be used for drilling plates in steel structure industries such as construction, bridges, and iron towers. It can realize automation, high precision, multiple varieties and mass production.



FEATURES

1. This machine is fully digitally controlled. CNC system controls servo automatically position and feed to ensure the accuracy of the drilling position;

2. High drilling accuracy CNC drilling power head. It is easy to quantify the depth; It has the functions of drilling blind holes, through holes, reaming and chamfering;

3. There are a number of T-shaped grooves on the workbench, which are used to clamp fixtures and workpieces.

4. Hydraulic clamping locks, not shaking when the power head and gantry drilling;

5. Linear guide line and ball screw fully protected and not exposed;

6. Flat chain automatic chip conveyor & Circulating cooling device;

7. Automatic lubrication device & Protection device. All moving (rotating) parts are automatically lubricated regularly;

8. Anti rusty stainless steel guardrail around the workbench;

9. Gantry beams & columns are widened and all steel plate welded, which is with good rigidity.

10. Full digital numerical control system control:

-Chip breaking function; Tool lifting chip removal function;

-Automatically converting CAD graphics into processing programs function;

- Adjusting the feed and speed according to different apertures,

-The standard numerical control system adopts the German Siemens numerical control system. It is equipped with a USB interface and an LCD liquid crystal display. The operation interface has functions such as human-machine dialogue, error compensation, and automatic alarm.

-Hole position preview and re-inspection function.



COMPOSITION

Worktable Movable Gantry
Drilling Power Head Automatic Chip Conveyor
Circulating Cooling Device Automatic Lubrication
Hydraulic System Pneumatic System
Electrical System


TECHNICAL DATA

Model

PZ1616

(Option PZ1610)

PZ2020

(Option PZ2016)

PZ3030

PZ4040

Option PZ4016)

PZ5050
Max. Size of Workpiece (mm) Max. Processing Range L*W (mm)





1600*1600(Option 1600*1000)





2000*2000(Option 2000*1600)





3000*3000





4000*4000(Option 4000*1600)





5000*5000

Max. Drilling Diameter (mm) Φ 50
Max. Drilling Depth (mm)



150



200







250



Drilling Spindle Type Servo controlling power head
Quantity 1 1 (option 2) 2
Spindle Rotation Speed 30-700
Spindle Power 7.5 7.5 ( Option 7.5*2)
Morse Taper #4
X Axis Max. Stroke 1600 2000 3000 4000 5000
Speed 0-6000
Y Axis Max. Stroke 1600 2000 3000 4000 5000
Speed 0-6000
Z Axis Max. Stroke 350 400 400 500 500
Speed 0-4000
Positioning accuracy

≤
0.04



Re-positioning accuracy

≤
0.03



Net Weight (Ton) 4.6 7 15 28 42
Overall Dimension L*W*H (mm) 2850*2640*2500 3450*3120*2550 4800*4400*2650 5900*5400*2850 7000*6600*2850

All of these models can be customized according to customer requirements.
