CNC Gantry Movable High Speed Steel Plate Drilling Milling Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cnc Drilling Milling Tapping | Application | Metal Processing |
|---|---|---|---|
| Processing | Drilling Machine | Usage | Metal Drilling Milling Tapping Scribing |
| CNC Or Not | CNC | Precision | High Precision Drilling Tapping Machine |
| Processing Types | Metal | Automatic Grade | Automatic |
| Spindle Taper | BT50 | Working Size | 2000*2000MM |
You can tick the products you need and communicate with us in the message board.
| Color | Black and White | |
|---|---|---|
| Working size | Customized |
Product Description

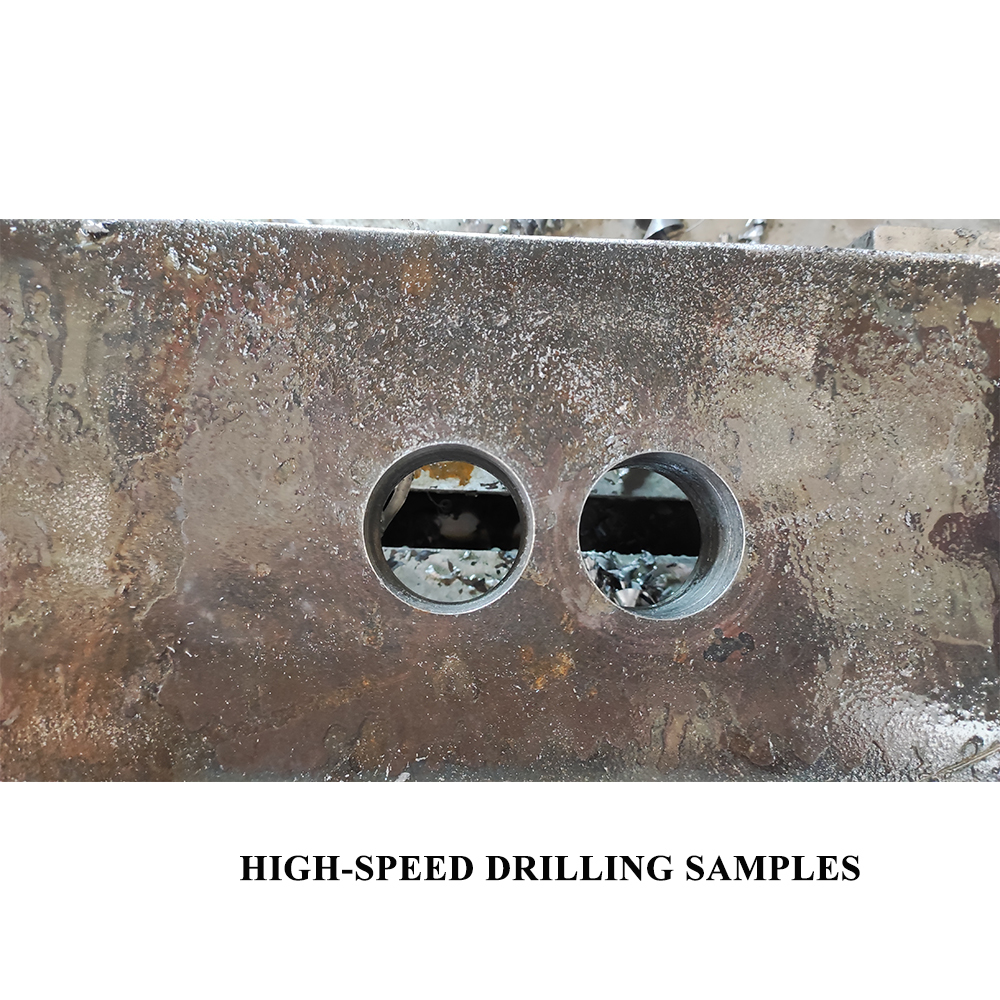

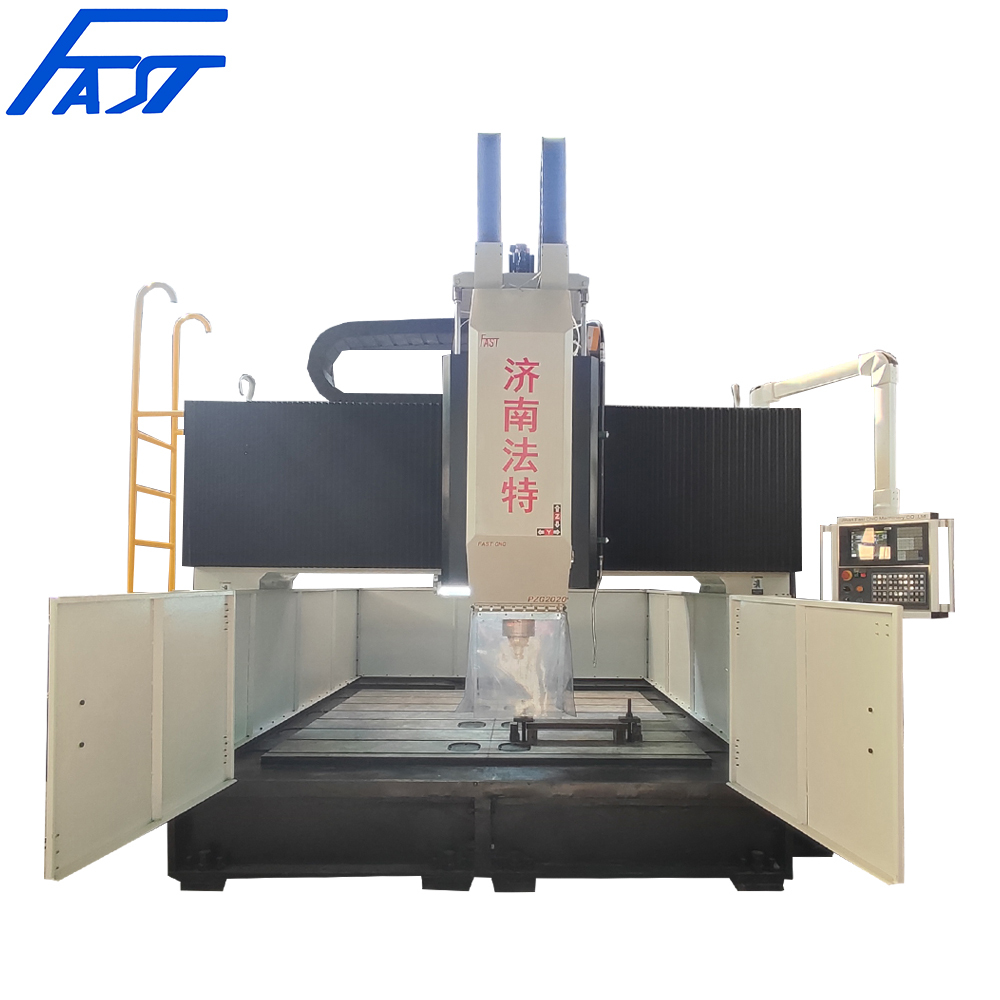

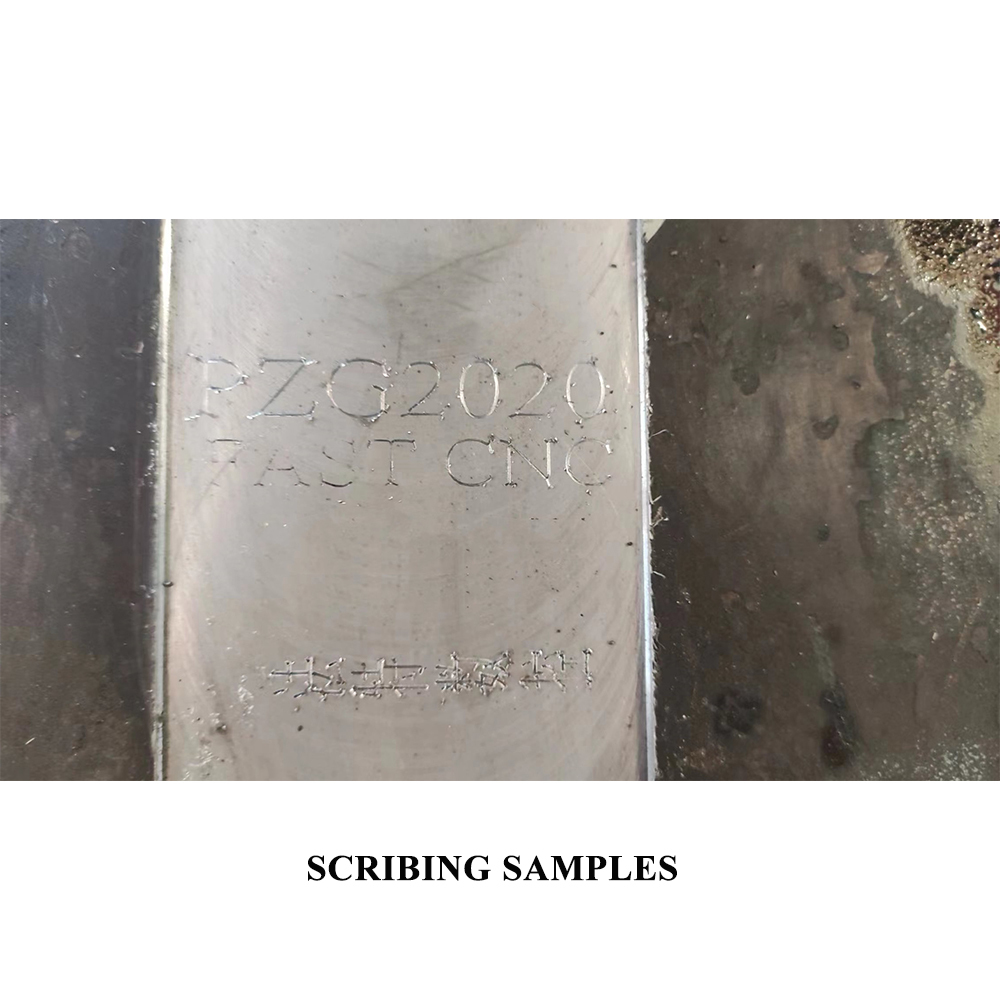

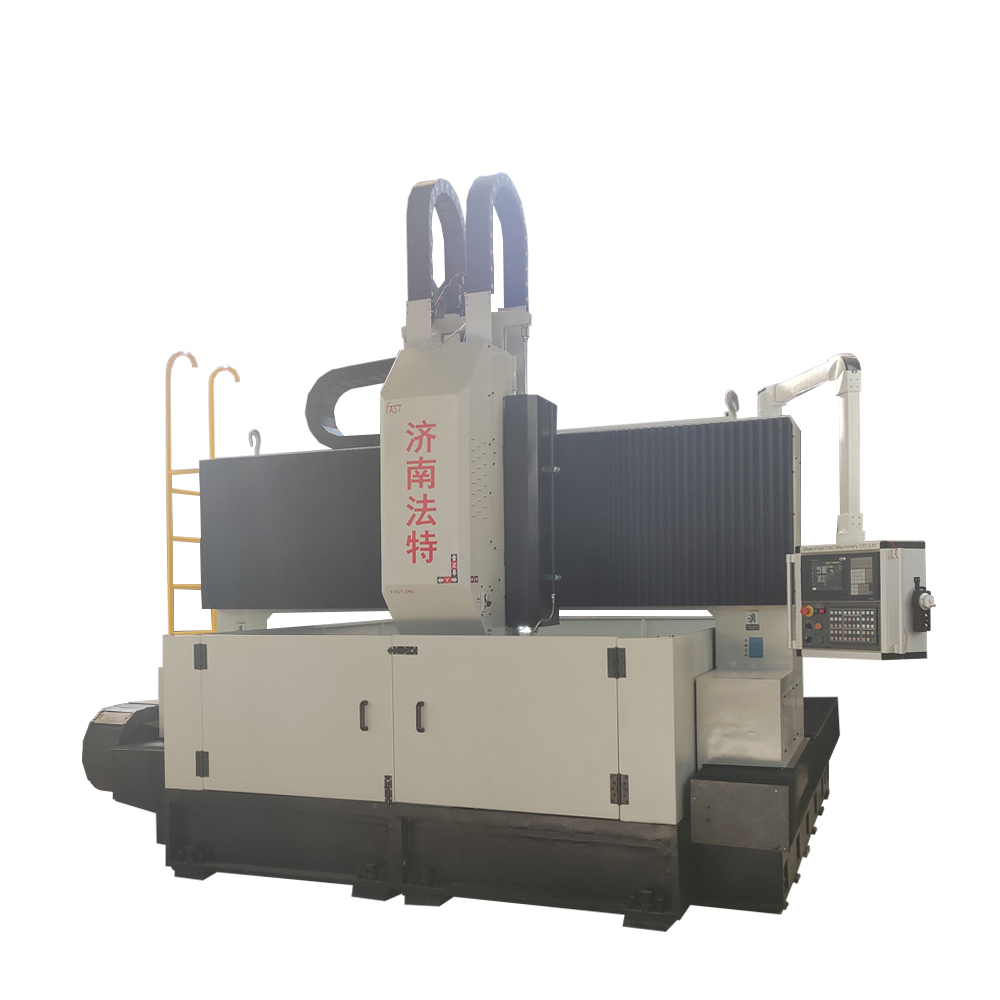

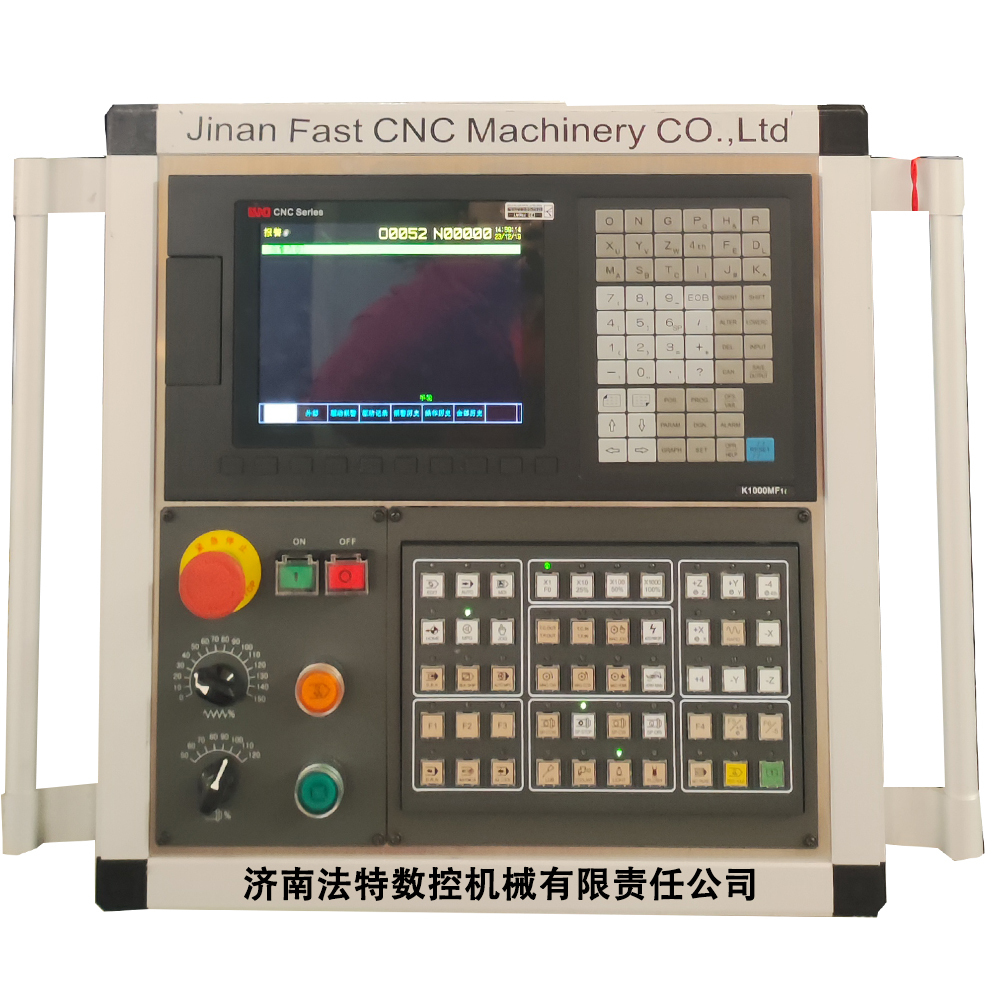

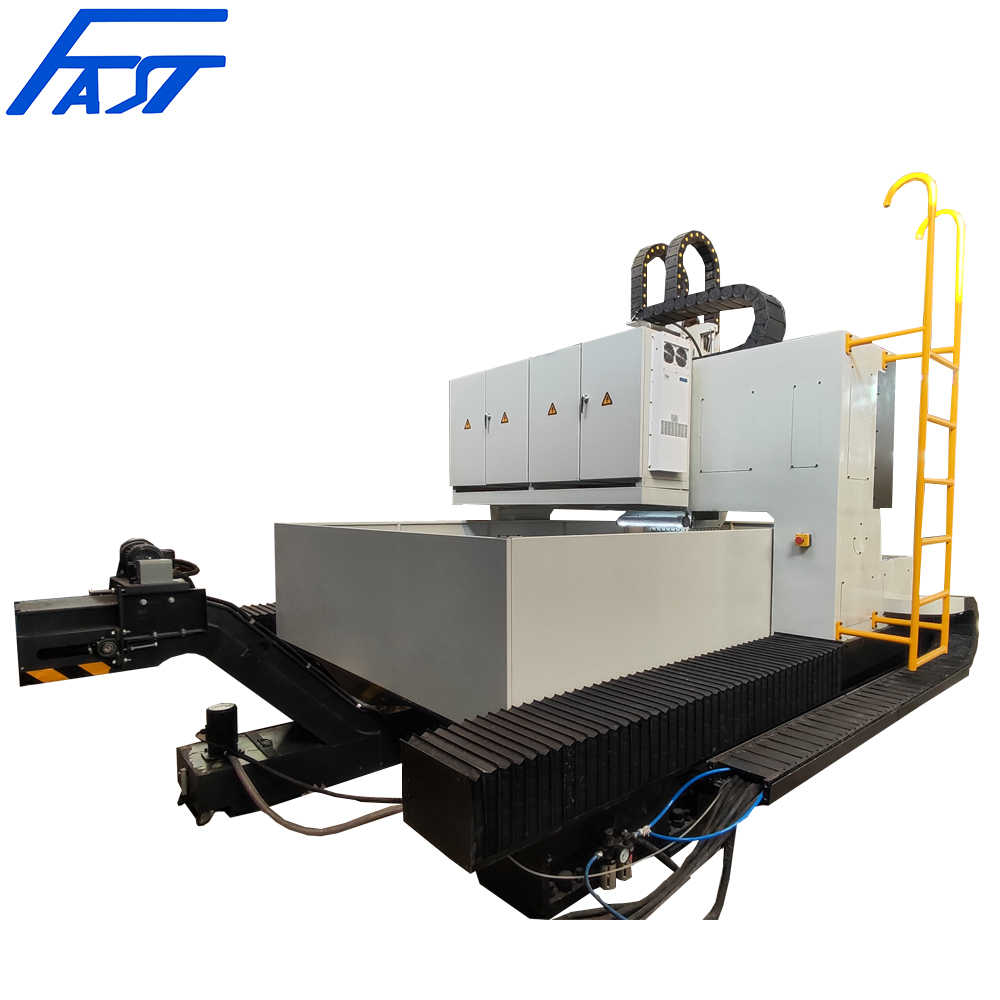

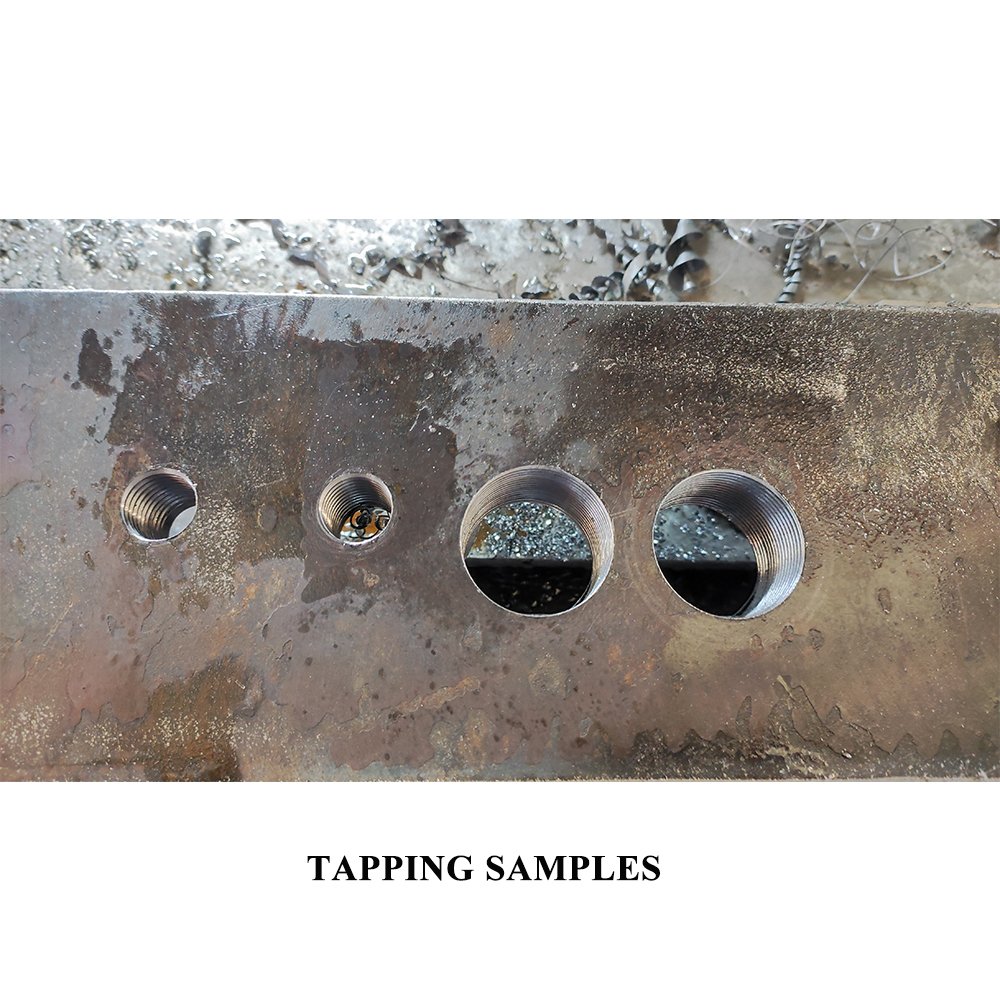

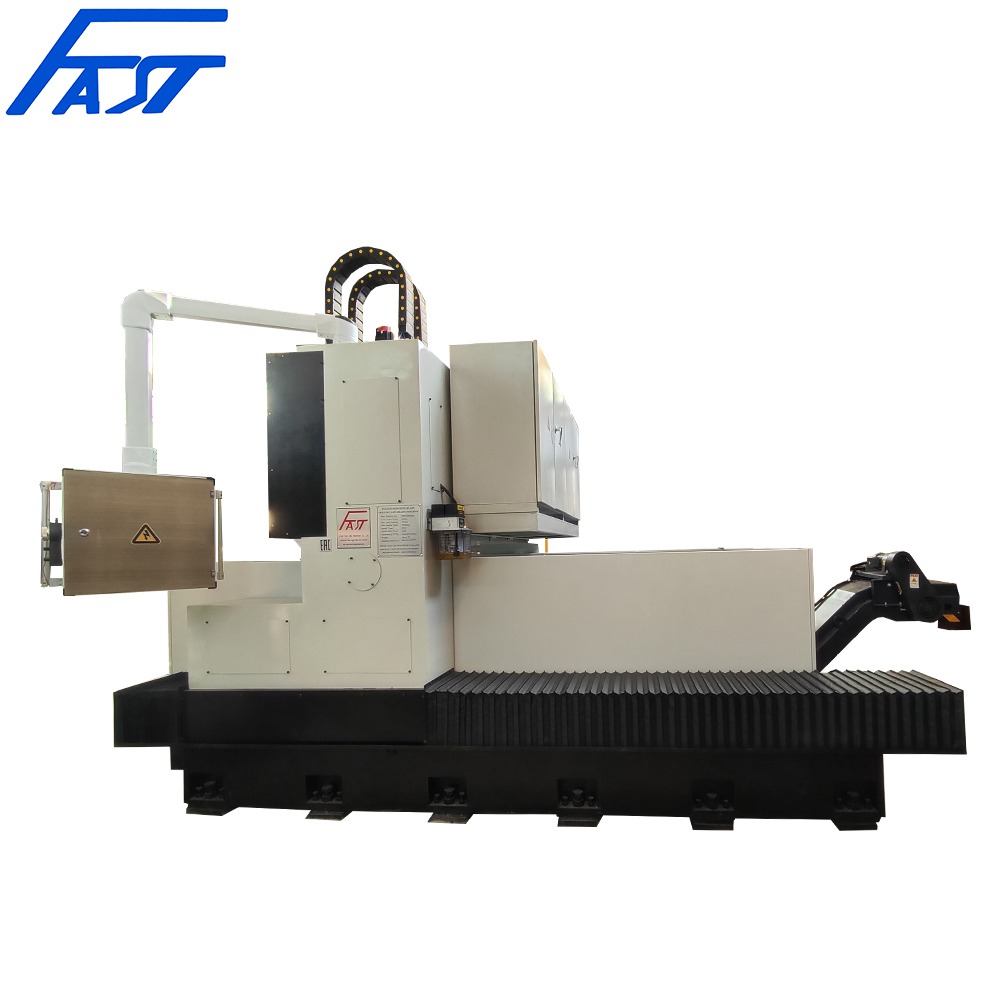

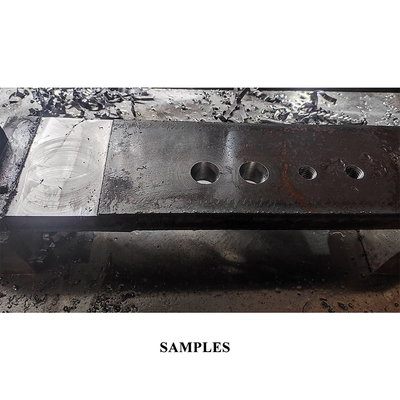

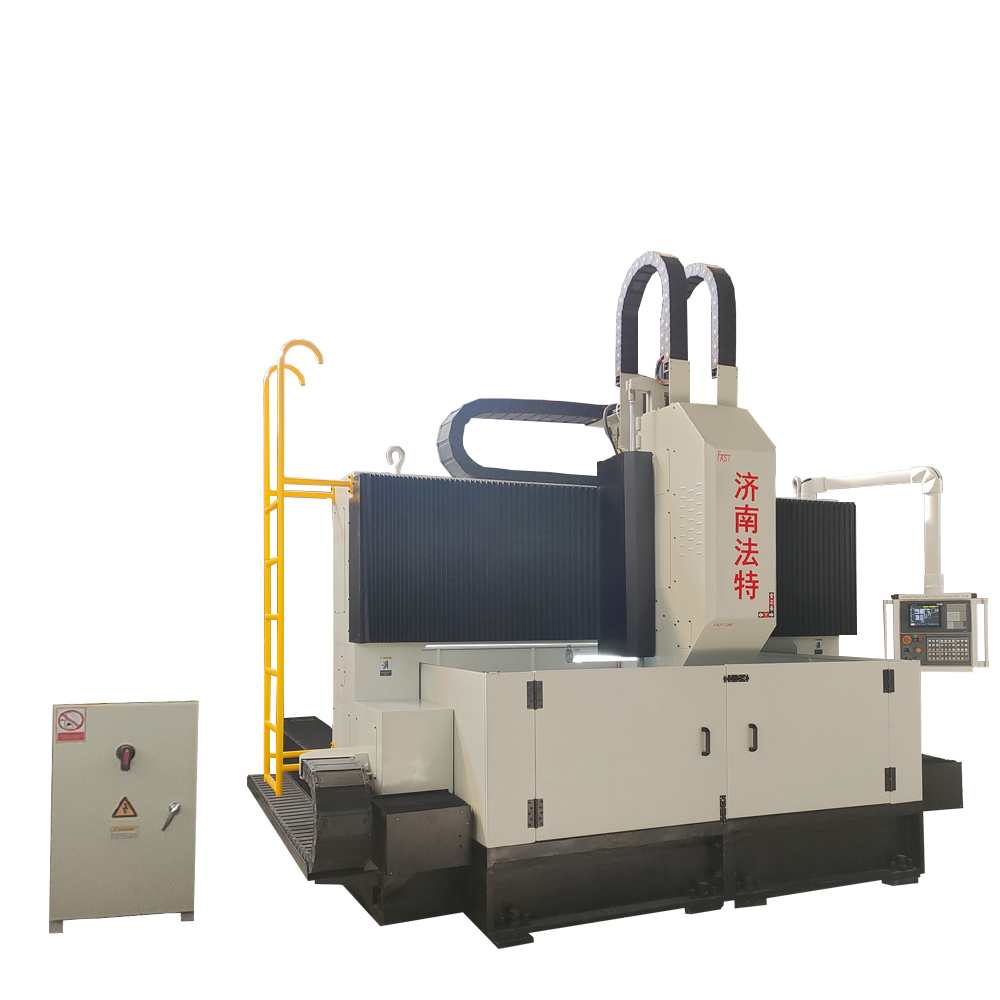

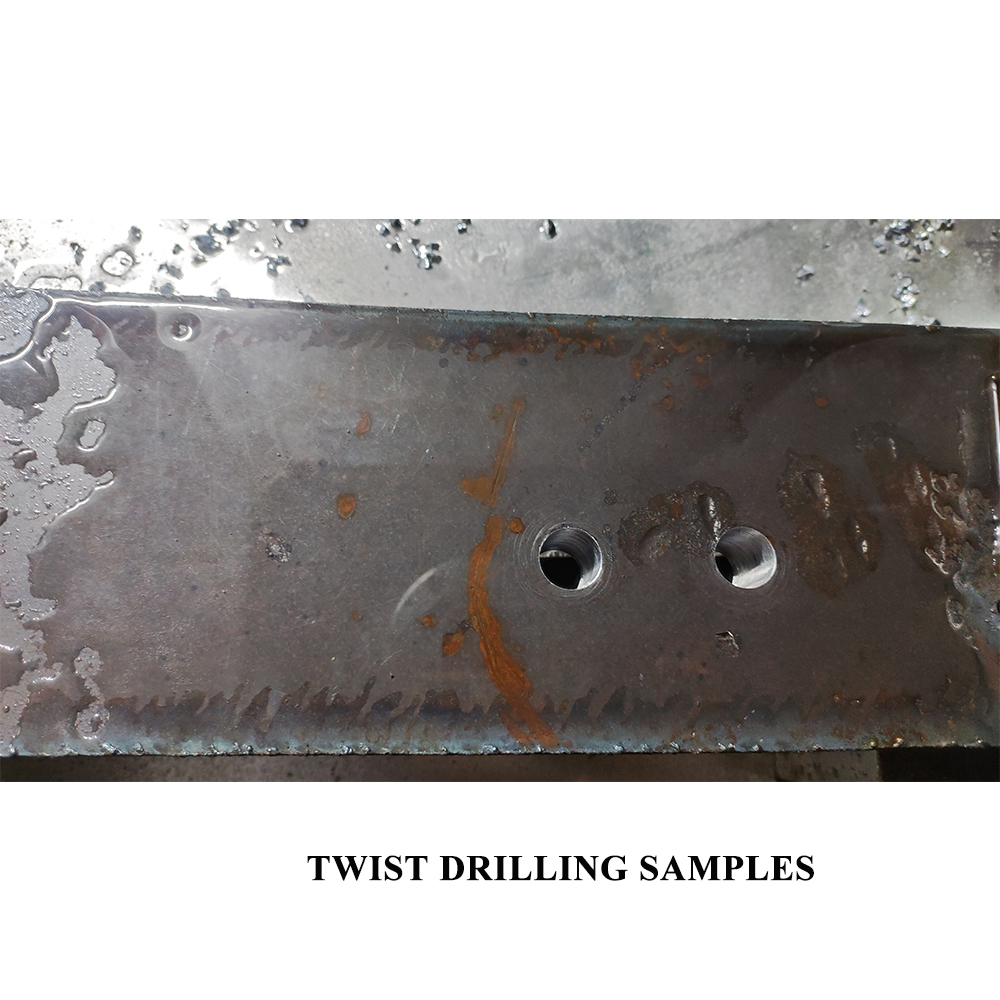

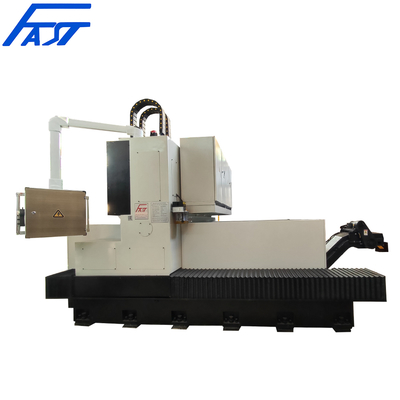

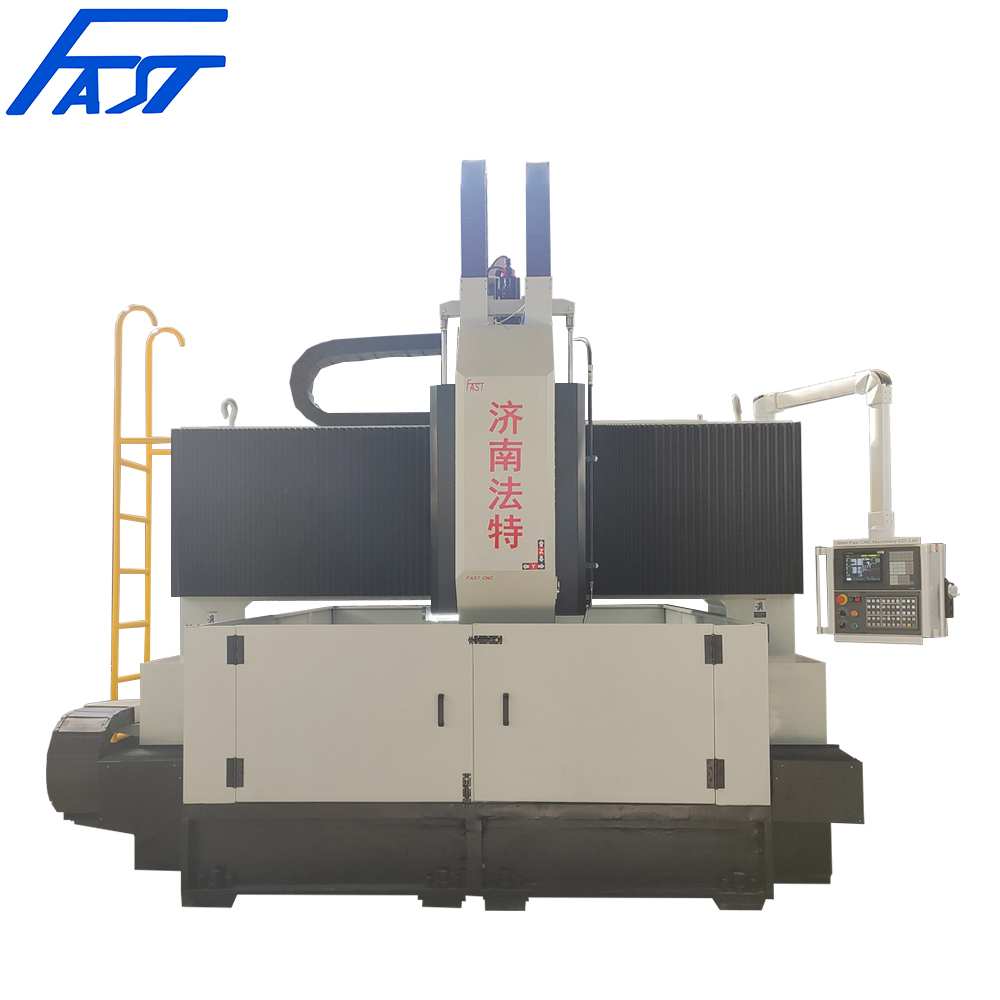

CNC High Speed Table Type Plate Drilling Milling Scribing Machine
APPLICATION
This machine is mainly used for drilling flanges, tube sheets, baffles and gear rings in petrochemical, boiler, wind power, engineering machinery.etc. It can process through holes and blind holes on single material parts and composite materials. It can also mill pipe holes and expand pipe grooves (using special tools).Also, it can be used for drilling plates in steel structure industries such as construction, bridges, and iron towers. It can realize automation, high precision, multiple varieties and mass production.
COMPOSITION
| Worktable | Movable Gantry |
| Drilling Power Head | Automatic Chip Conveyor |
| Circulating Cooling Device | Automatic Lubrication |
| Hydraulic System | Pneumatic System |
| Electrical System |
TECHNICAL DATA
|
Name |
Specification |
|
Mode |
Gantry movable type CNC |
|
Function |
Drilling ,Milling |
|
Table size (L*W) |
2230*2300mm |
|
Max. workpiece size (L*W) |
2000*2000mm |
|
Distance between the bottom of the spindle to work table |
230~630mm |
|
Processing Capability |
|
|
Max. Drilling Depth |
150mm |
|
Max. Drilling Diameter |
50mm |
|
Drilling Power Head |
|
|
Type of Power Head |
BT50 Servo control power head |
|
Quantity |
1 |
|
Type of Clamp |
Automatic broach, air pressure release |
|
Spindle Technical Data |
|
|
Spindle Power |
22kW |
|
Spindle Rotating Speed |
0~3000r/min |
|
Main shaft rated output torque |
280Nm |
|
Longitudinal movement X Axis |
|
|
Max. Stroke |
2000mm |
|
Speed of X axis |
0~6000mm/min |
|
Servo motor power of X axis |
2.3kW (with precision reducer) |
|
Transverse movement of Y Axis |
|
|
Max Stroke |
2000mm |
|
Speed of Y axis |
0~6000mm/min |
|
Servo motor power of Y axis |
2.3kW (with precision reducer) |
|
Vertical Stroke of Z Axis |
|
|
Max. Stroke |
400mm |
|
Feeding Speed of Z axis |
0~4000mm./min |
|
Servo motor power of Z axis |
2.3kW(with precision reducer) |
|
CNC Axes |
4 Axes |
|
Machine Accuracy |
|
|
Positioning Accuracy |
<0.05mm |
|
Re-positioning Accuracy |
≤0.03mm |
|
Verticality of Spindle to work table |
≤0.03mm (within 300mm) |
|
Run out of the bottom of spindle and the side spindle |
≤0.005 mm |
|
Lubrication system pressure |
1.0MPa |
|
Cooling system & filter system |
|
|
Cooling System Max. Pressure,Power, Flow |
5.0MPa,5.5kW, 30L/min |
|
Chip remover power |
0.75kW |
|
Outline dimension(L*W*H) |
3170*3100*2600mm |
|
Total Power |
Appx.34kW |
|
Net Weight |
Approx. 16T |
