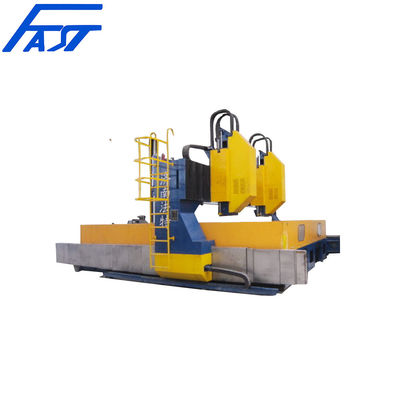

Best Selling Double Spindles High Speed Flanges CNC Milling And Drilling Machine PZG5050

Best Selling Double Spindles High Speed Flanges CNC Milling And Drilling Machine PZG5050
Best Selling Double Spindles High Speed Flanges CNC Milling And Drilling Machine PZG5050 Best Selling Double Spindles High Speed Flanges CNC Milling And Drilling Machine PZG5050 Best Selling Double Spindles High Speed Flanges CNC Milling And Drilling Machine PZG5050 Best Selling Double Spindles High Speed Flanges CNC Milling And Drilling Machine PZG5050 Best Selling Double Spindles High Speed Flanges CNC Milling And Drilling Machine PZG5050 Best Selling Double Spindles High Speed Flanges CNC Milling And Drilling Machine PZG5050

Large Image :  Best Selling Double Spindles High Speed Flanges CNC Milling And Drilling Machine PZG5050 Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: PZG5050
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 232558/set
Packaging Details: Film; plywood pallet
Delivery Time: 30~40year
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300sets/year
Detailed Product Description
Condition: New Warranty: 12 Months
Port: Qingdao Port MOQ: 1 SET
Service: 24 Hours Online Services Voltage: 380V
Certificate: ISO9001 CNC Or Not: CNC
Function: Drilling Milling Color: Blue Yellow

Best Selling Double Spindles High Speed Flanges CNC Milling And Drilling Machine PZG5050

Best Selling Double Spindles High Speed Flanges CNC Milling And Drilling Machine PZG5050 0

APPLICATION

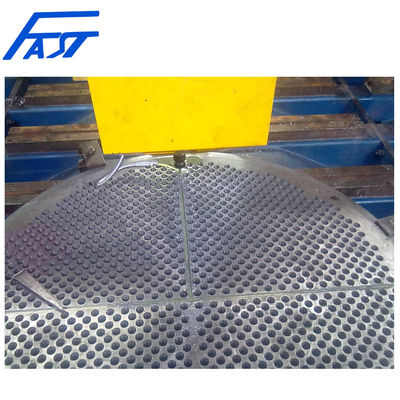

This machine is mainly used for drilling flanges, tube sheets, baffles and gear rings in petrochemical, boiler, wind power, engineering machinery.etc. It can process through holes and blind holes on single material parts and composite materials. It can also mill pipe holes and expand pipe grooves (using special tools).Also, it can be used for drilling plates in steel structure industries such as construction, bridges, and iron towers. It can realize automation, high precision, multiple varieties and mass production.



FEATURES



1. This machine is fully digitally controlled. CNC system controls servo automatically position and feed to ensure the accuracy of the drilling position;

2. The movable gantry is installed on the left and right rail seats, with good dynamic and static rigidity. Worktable is stationary;

3. This machine adopts numerical control ram type drilling and milling power head, which has high drilling precision, high efficiency, convenient use and simple maintenance;

4. It has the functions of light milling, drilling, tapping and chamfering.

5. There are a number of T-shaped grooves on the workbench, which are used to clamp fixtures and workpieces.

6. Hydraulic clamping locks, not shaking when the power head and gantry drilling;

7. Equipped with a tool magazine, it is extremely convenient to load and unload tools.

8. Linear guide line and ball screw fully protected and not exposed;

9. Flat chain automatic chip conveyor & Circulating cooling device;

10. Automatic lubrication device & Protection device. All moving (rotating) parts are automatically lubricated regularly;

11. Gantry beams & columns are widened and all steel plate welded, which is with good rigidity.

12. Full digital numerical control system control:

-Chip breaking function; Tool lifting chip removal function;

-Automatically converting CAD graphics into processing programs function;

- Adjusting the feed and speed according to different apertures,

-The standard numerical control system adopts the German Siemens numerical control system. It is equipped with a USB interface and an LCD liquid crystal display. The operation interface has functions such as human-machine dialogue, error compensation, and automatic alarm.

-Hole position preview and re-inspection function.



COMPOSITION



Worktable Movable Gantry
Drilling Power Head Automatic Chip Conveyor
Circulating Cooling Device Automatic Lubrication
Hydraulic System Pneumatic System
Electrical System


TECHNICAL DATA



Model PZ2020G PZ3030G PZ4040G PZ5050G PZ6060G
Max. Size of Work piece(mm) Max.Hole Distance L×W (mm) 2000*2000 3000*3000 4000*4000 5000*5000 6000*6000
Max. Thickness (mm) 250 250 250 250 250

The Distance Between The Lower Part of The Axes and the Work

Bench(mm)

230~730
Milling Φ100 Cutter Head, Depth 2mm (Material Q345)
Max. Drilling Diameter (mm) Φ50 Φ50 Φ50 Φ50 Φ60
Drilling power head Quantity 1 1 OR 2 2 2 2
Main Axes Taper Hole BT50
Rotating Speed of Drilling Spindle (r/min) 30~2500 30~2500 30~2500 30~2500 30~2500
Motor Power of Drilling Spindle (kW) 22 22
OR 22*2
22*2 22*2 22*2
Longitudinal Movement(X-axis) Max Stroke (mm) 2000 3000 4000 5000 6000
X-axis Movement Speed (m/min) 0~8000
Lateral Movement(Y axis) Max. Distance (mm) 2000 3000 4000 5000 6000
Y-axis Movement Speed (m/min) 0~8000
Vertical Max. Stroke of Z-axis 500 500 500 500 500
Feeding Speed of Z axis 0~4000
Positioning accuracy ≤0.04
Repeat positioning accuracy ≤0.03
Number of clip cleaner 2
Speed of Clip Removal (m/min) 1
Clip Removal Motor Power(kW) 20.75
Outline Dimension L*W*H(mm) 4600*4200*3900 5800*5520*3900 7600*6540*3900 9200*8500*4300 9680*.9520*6000
Machine Weight(T) 24 35 56 70 75
