Cheap New 1010 3 Axis Cnc Milling Machine Drill Press Price Cnc Gantry Drilling Milling Machine
|Mode||Gantry Type||Table Size (L*W)||1300*1100mm|
|Max. Workpiece Size (L*W)||1000*1000mm||Max. Drilling Depth||250mm|
|Max. Drilling Diameter||Ф60mm||Milling Diameter||Milling Cutter Head Diameter Ф100mm|
|Type Of Power Head||BT50 Servo Control Power Head||Quantity||1|
|Type Of Clamp||Butterfly Spring Pull Rod Device (air Pressure Tool)||Spindle Power||15kW|
|Color||Black & White|
|Controlling System Language||English （Option：Russia）|

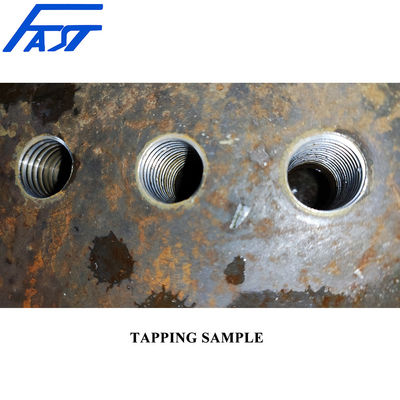

The machine is mainly used for drilling, milling, chamfering and tapping on flanges, tubesheets, and machine bases. Internal cooling high-speed drilling with carbide milling cutters or external cooling drilling with ordinary high-speed steel twist drills, end mills can also be used to mill grooves and special tools are used to mill the expansion grooves of the tube holes of the tubesheet. The machining process of the machine is digitally controlled. The operation is very convenient. It can realize automation, high precision, multi-variety and mass production.
1. The base worktable is a high-strength casting, which is processed by artificial aging heat treatment to remove internal stress, with good dynamic and static rigidity and no deformation;
2. The fixed beam is a high-strength casting, which is processed by artificial aging heat treatment to remove internal stress, with good dynamic and static rigidity and no deformation;
3. Two rolling linear guide rail pairs with ultra-high bearing capacity are installed on the CNC sliding saddle;
4. The high-speed drilling and milling power head adopts a spindle motor, which drives a special precision spindle through a toothed synchronous belt to realize stepless speed change.
5. This machine is equipped with a flat chain type automatic chip conveyor and a chip collector.
6. This machine is equipped with an automatic lubricating device, which can automatically lubricate the guide rails, lead screws and other moving pairs at regular intervals;
7. The machine is equipped with a pneumatic system for dynamic balancing of the ram and spindle release.
8. Equipped with machine lighting, it is beneficial for the operator to operate at night;
9. Full CNC Control
- With chip breaking function, the chip breaking time and chip breaking cycle can be set on the human-machine interface.
- With the tool lifting function, the tool lifting height can be set on the human-machine interface. When drilling to this height, the drill bit is quickly lifted to the top of the workpiece, and then fast-forwarded to the drilling surface and automatically converted into working advance.
- Provide software for automatic conversion of CAD graphics into processing programs. It can be installed on any computer of the user.
- Centralized operation control box and hand-held unit, the machine adopts numerical control system, which is convenient for programming, storage, display and communication. The operation interface has functions such as human-machine dialogue, error compensation, and automatic alarm.
Fixed Beam Type Gantry
CNC Vertical Ram Type Drilling Power Head
Automatic Chip Conveyor and Circulating Cooling System
Automatic Lubrication System
|Full CNC Control|
|Table size (L*W)||1300*1100mm|
|Max. workpiece size (L*W)||1000*1000mm|
|Distance between the bottom of the spindle to work table||230~630mm|
|Max. Drilling Depth||250mm|
|Max. Drilling Diameter||Ф60mm|
|Milling Diameter||Milling cutter head diameter Ф100mm|
|Drilling Power Head|
|Type of Power Head||BT50 servo control power head|
|Type of Clamp||Butterfly spring pull rod device (air pressure tool)|
|Spindle Technical Data|
|Spindle Rotating Speed||30~3000r/min|
|Type of Connection mold of spindle||BT50|
|Longitudinal movement X Axis|
|Speed of X axis||0~8000mm/min|
|Servo motor power of X axis||2.3kW|
|Transverse movement of Y Axis|
|Speed of Y axis||0~8000mm/min|
|Servo motor power of Y axis||2.3kW|
|Vertical Stroke of Z Axis|
|Feeding Speed of Z axis||0~5000mm./min|
|Servo motor power of Z axis||2.3kW (With brake)|
|CNC Axes||4 Axes|
|Verticality of Spindle to work table||≤0.03mm|
|Run out of the bottom of spindle and the side spindle||≤0.02 mm|
|Pneumatic system pressure||0.6MPa|
|Lubrication system pressure||1.0MPa|
|Cooling system & filter system|
|Inner Cooling System Max. Pressure||5.0MPa|
|Out cooling system pressure||0.2MPa|
|Outline dimension(L*W*H)||3200*2000*2600 mm|
|Net Weight||Approx. 5T|
