Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia

I'm Online Chat Now
Certification
China Jinan FAST CNC Machinery Co., Ltd certification
China Jinan FAST CNC Machinery Co., Ltd certification
To:Jinan FAST CNC Machinery PLC Dear Sir, With the letter we would like to thank for your cooperation in the successful installation, testing and commissioning of High Speed CNC Drill Of First in its kind Ethiopia , that would enable us do many works especially sugar product tube plate holes of various deameters and thickness. ... With Regards

—— Mr. Begall

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia

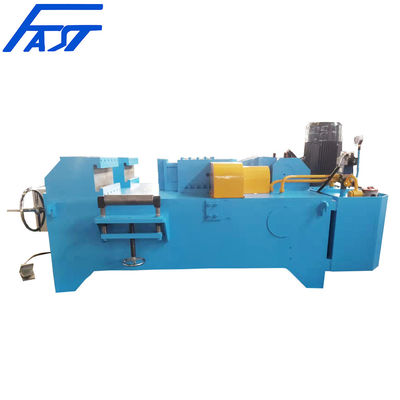

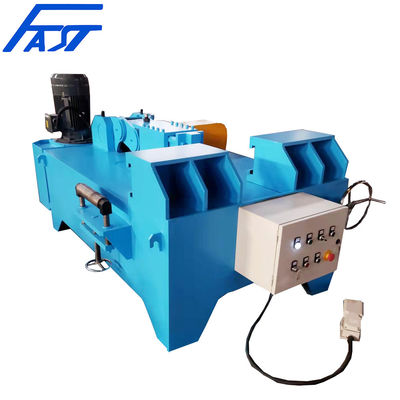

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia
Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia

Large Image :  Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: XZ25
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD 10000~15000/set
Packaging Details: FILM;plywood box
Delivery Time: 300sets/year
Payment Terms: L/C, T/T
Supply Ability: L/C, T/T, Western Union
Detailed Product Description
Max. Straightening Force (kN): 1600 Condition: New
Warranty: 12 Months Max. Straightening Round Steel: φ150
Max. Straightening Angle (mm)250*250*25: 250*250*25 Max. Straightening Channel Steel: φ260
Max. Straightening Band Steel: φ260 Max. Straightening Square Steel: φ150
Machine Format: Horizontal Stroke Time (m/min): >25

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 0

APPLICATION

The machine is used for straightening, opening& closing or bending for angles, channels, H-beam, square, round, pipe, shafts, and 工-type steels. This machine is widely used in the winding, power, bridge, construction industries, iron tower, metal plates and maintenance industries. Also, this machine can be used as horizontal pressing equipment.



FEATURES

  • The fuselage of section straightening machine the C steel welding structure.
  • The transmission styles include hydraulic transmission and engine transmission.
  • Operation location is divided into single location and double location. Each location has the alone disposition seal width-adjusting device.


TECHNICAL DATA

Model XZ20/14K XZ25/18K
Max. Straightening Force (kN) 1000 1000 (Option 1600)
Max. Straightening Angle (mm) 200*200*20 250*250*25
Max. Straightening Round Steel φ150 φ150
Max. Straightening Channel Steel φ260 φ260
Max. Straightening Band Steel φ260 φ260
Max. Straightening Square Steel φ150 φ150
Machine Format Horizontal
Max. Opening Angle Size (mm) 140*140*12 180*180*18
Max. Opening & Closing Angle (°) 90°±25°
Stroke Time (m/min) >25 >25
Working Stroke (mm) 20 20
Close Width Adjuster (mm) 100 100
Motor Power 7.5 11 (Option 15)
Overall Dimension L*W*H (mm) 2200*1200*700 2400*1300*750
Driving Mode Hydraulic Driving, Stepless Adjustable, Easy Operating.

All of these models can be customized according to customer requirements.


DETAIL IMAGES

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 1

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 2

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 3Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 4

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 5

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 6



Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 7



Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 8

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 9

WHY CHOOSE US

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 10

COMPANY PROFILE

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 11

WORKSHOP

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 12

CUSTOMER VISIT

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 13

FAQ

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 14

CERTIFICATE

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 15

PACKING AND SHIPPING

Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia 16
