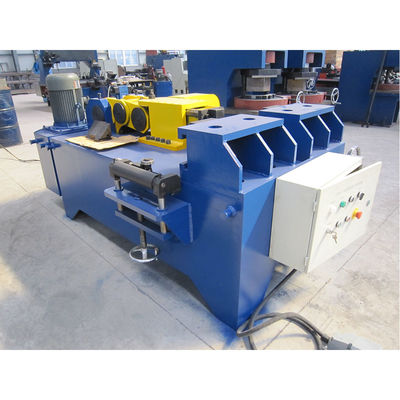

Hydraulic Straightening Opening And Closing Machine XZ20

Hydraulic Straightening Opening And Closing Machine XZ20-Jinan FAST CNC Machinery co., Ltd 0

APPLICATION

The machine is used for straightening, opening& closing or bending for angles, channels, H-beam, square, round, pipe, shafts, and 工-type steels. This machine is widely used in the winding, power, bridge, construction industries, iron tower, metal plates and maintenance industries. Also, this machine can be used as horizontal pressing equipment.



FEATURES

  • The fuselage of section straightening machine the C steel welding structure.
  • The transmission styles include hydraulic transmission and engine transmission.
  • Operation location is divided into single location and double location. Each location has the alone disposition seal width-adjusting device.


TECHNICAL DATA

Model XZ20/14K XZ25/18K
Max. Straightening Force (kN) 1000 1000 (Option 1600)
Max. Straightening Angle (mm) 200*200*20 250*250*25
Max. Straightening Round Steel φ150 φ150
Max. Straightening Channel Steel φ260 φ260
Max. Straightening Band Steel φ260 φ260
Max. Straightening Square Steel φ150 φ150
Machine Format Horizontal
Max. Opening Angle Size (mm) 140*140*12 180*180*18
Max. Opening & Closing Angle (°) 90°±25°
Stroke Time (m/min) >25 >25
Working Stroke (mm) 20 20
Close Width Adjuster (mm) 100 100
Motor Power 7.5 11 (Option 15)
Overall Dimension L*W*H (mm) 2200*1200*700 2400*1300*750
Driving Mode Hydraulic Driving, Stepless Adjustable, Easy Operating.

All of these models can be customized according to customer requirements.
