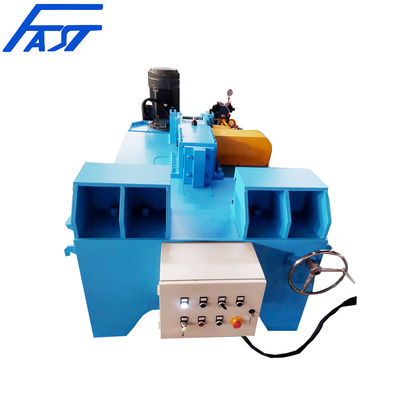

Jinan FASTCNC Angle Profile Straightening Machine For Angle Channel Pipe Round Bar Square Steel Plate
|Max. Straightening Force (kN)||1600||Condition||New|
|Warranty||12 Months||Max. Straightening Round Steel||φ150|
|Max. Straightening Angle (mm)250*250*25||250*250*25||Max. Straightening Channel Steel||φ260|
|Max. Straightening Band Steel||φ260||Max. Straightening Square Steel||φ150|
|Machine Format||Horizontal||Stroke Time (m/min)||>25|
|Controlling System Language||Button|
Angle Channel Pipe Round Bar Square Steel Plate Profile Straightening Machine Exported To Russia
The machine is used for straightening, opening& closing or bending for angles, channels, H-beam, square, round, pipe, shafts, and 工-type steels. This machine is widely used in the winding, power, bridge, construction industries, iron tower, metal plates and maintenance industries. Also, this machine can be used as horizontal pressing equipment.
- The fuselage of section straightening machine the C steel welding structure.
- The transmission styles include hydraulic transmission and engine transmission.
- Operation location is divided into single location and double location. Each location has the alone disposition seal width-adjusting device.
|Max. Straightening Force (kN)||1000||1000 (Option 1600)|
|Max. Straightening Angle (mm)||200*200*20||250*250*25|
|Max. Straightening Round Steel||φ150||φ150|
|Max. Straightening Channel Steel||φ260||φ260|
|Max. Straightening Band Steel||φ260||φ260|
|Max. Straightening Square Steel||φ150||φ150|
|Max. Opening Angle Size (mm)||140*140*12||180*180*18|
|Max. Opening & Closing Angle (°)||90°±25°|
|Stroke Time (m/min)||>25||>25|
|Working Stroke (mm)||20||20|
|Close Width Adjuster (mm)||100||100|
|Motor Power||7.5||11 (Option 15)|
|Overall Dimension L*W*H (mm)||2200*1200*700||2400*1300*750|
|Driving Mode||Hydraulic Driving, Stepless Adjustable, Easy Operating.|
★ All of these models can be customized according to customer requirements.
