Production Line CNC Router Wood Working Automatic Loading And Unloading Nesting Machine For CNC Furniture Cabinet

Place of Origin China
Brand Name FAST
Certification ISO9001
Model Number E4-1325
Minimum Order Quantity 1SET
Price USD 20000~30000/set
Packaging Details Plywood cases
Delivery Time 30 days
Payment Terms L/C, T/T, Western Union
Supply Ability 300sets/year
Product Details
Condition New Video Outgoing-inspection Provided
After-sales Service Field Installation, Commissioning And Training Key Selling Points Automatic
Working Size 2480*1230*180mm Spindle Power 9.6kw
Controller Syntec Control System Table Structure T-slot And Vacuum Table
Working Speed 20m/min Machine Type High Speed Router
You can tick the products you need and communicate with us in the message board.
Name Specification
Color Black& White
Controlling System Italy OSAI
Leave a Message
Name Specification
Product Description

Production Line CNC Router Wood Working Automatic Loading And Unloading Nesting Machine For CNC Furniture Cabinet

Production Line CNC Router Wood Working Automatic Loading And Unloading Nesting Machine For CNC Furniture Cabinet 0

APPLICATIOINS

Well-suited for processing of fronts, pavements, balustrades, doors and windows, engravings, etc.



DECORATIONI

 Solid wood, PAL, MDF, plastic, resins, composite materials, insulating panels, acrylic, PVC, hard materials, stone, glass Organic and non -ferrous metals (aluminium, copper, etc.)  etc.



FEATURES

Processing center for intensive use, with rotating shops with eight positions and rapid change.



FUNCTIONS

Routing, drilling, cutting, vertical and horizontal milling, smoothing, sanding etc. Using top mechanical and electronic components, for reliability and precision, servo motors and Japan Shimpo reducer and fast Italy tool changer , Syntec controlling systems, Frence low voltage electric components, with a Becker pump 250mc /h, or fixing with retractable clamps and pins. Steel frame and transmission Germany Electromagnetic HSD Italy 9.6kw, Linear tool magazine with eight positions Ready for axes four.



Optional: aggregate 5 +4



TECHNICAL DATA



F3 series E3-1325D
Travelling size 1228*2440*200mm
Working size 1228*2440*180mm
Table size 1228*2440 mm
Transmission X/Y rack and pinion drive, Z ball screw drive
Table structure T-slot vacuum
Spindle power 9.6KW
Spindle speed 24000r/min
Travelling speed 45m/min
Working speed 20m/min
Tool magazine Carousel
Tool slots 8
Driving system Yaskawa
Voltage AC380/3PH/50HZ
Controller Sytec/Osai



DETAIL IMAGES

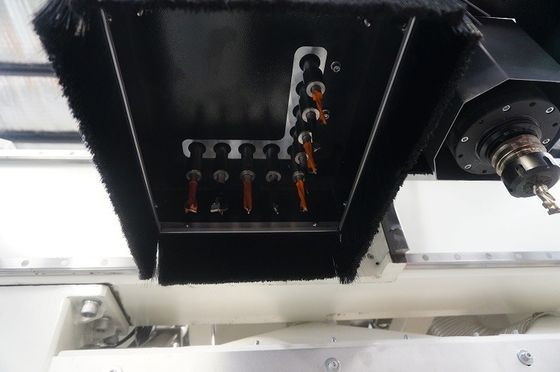

Production Line CNC Router Wood Working Automatic Loading And Unloading Nesting Machine For CNC Furniture Cabinet 1Production Line CNC Router Wood Working Automatic Loading And Unloading Nesting Machine For CNC Furniture Cabinet 2Production Line CNC Router Wood Working Automatic Loading And Unloading Nesting Machine For CNC Furniture Cabinet 3Production Line CNC Router Wood Working Automatic Loading And Unloading Nesting Machine For CNC Furniture Cabinet 4Production Line CNC Router Wood Working Automatic Loading And Unloading Nesting Machine For CNC Furniture Cabinet 5

SAMPLES

Production Line CNC Router Wood Working Automatic Loading And Unloading Nesting Machine For CNC Furniture Cabinet 6

F3-1530D Carousel ATC CNC Router With Boring Unit

F3-1530D Carousel ATC CNC Router With Boring Unit

F3-1530D Carousel ATC CNC Router With Boring Unit

FAQ

· Are you a Manufacturer or a Trading company?

Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.

Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc

· Do you have stock product ready to delivery?

In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.

· After an order is placed,when to delivery?

General 30 working days. It depends on specific items and item quantities.

Please check with sale manager for exact delivery time.

· What is the Warranty with After-sale Services?

12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.

After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.

· What about the product quality?

Each machine must be carried out quality examination and test when shipping and delivery goods
