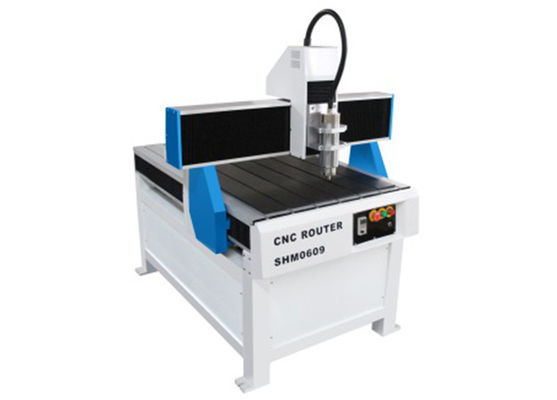

Diy Cnc Router 0609 9060 6040 Woodworking Cnc Router Machine/Cnc Router 3 Axis/Mini Cnc 4040

Diy Cnc Router 0609 9060 6040 Woodworking Cnc Router Machine/Cnc Router 3 Axis/Mini Cnc 4040
Diy Cnc Router 0609 9060 6040 Woodworking Cnc Router Machine/Cnc Router 3 Axis/Mini Cnc 4040 Diy Cnc Router 0609 9060 6040 Woodworking Cnc Router Machine/Cnc Router 3 Axis/Mini Cnc 4040 Diy Cnc Router 0609 9060 6040 Woodworking Cnc Router Machine/Cnc Router 3 Axis/Mini Cnc 4040 Diy Cnc Router 0609 9060 6040 Woodworking Cnc Router Machine/Cnc Router 3 Axis/Mini Cnc 4040

Large Image :  Diy Cnc Router 0609 9060 6040 Woodworking Cnc Router Machine/Cnc Router 3 Axis/Mini Cnc 4040 Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001 CE
Model Number: 0609
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000~6900/set
Packaging Details: Plywood cases
Delivery Time: 21~30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300sets/year
Detailed Product Description
Condition: New Core Components: 1.5kW Self-coolant Spindle
Travelling Size: 400*400*100mm/600*900*100mm Working Size: 730*700mm/890*900mm
Able Surface: T-slot Extrusions X,Z Surface: Hiwin Ball Screw
Y Surface: Screw Ball And Hiwin Rail Linear Bearings Max. Power Consumption(Without Spindle): 0.8kW
Max. Rapid Travel Rate: 6000mm/min Max. Working Speed: 4000 Mm/min
Spindle Speed: 0~24000RPM Driving System: Stepper System
Voltage: AC220/50/60Hz(Option :380V) Command Language: G Code
Operating System: DSP System(Option :Mach 3 PC Software)

Diy Cnc Router 0609 9060 6040 Woodworking Cnc Router Machine/Cnc Router 3 Axis/Mini Cnc 0404

Diy Cnc Router 0609 9060 6040 Woodworking Cnc Router Machine/Cnc Router 3 Axis/Mini Cnc 4040 0



TECHNICAL DATA

Description Parameter
Travelling Size 400*400*100mm/600*900*100mm
Working Size 730*700mm/890*900mm
Table Surface T-slot Extrusions
X,Z Surface Hiwin Ball Screw
Y Surface Screw Ball and Hiwin Rail Linear Bearings
Max. Power Consumption(Without spindle) 0.8kW
Max. Rapid Travel Rate 6000mm/min
Max. Working Speed 4000 mm/min
Spindle Power Motor 1.5kW self-coolant spindle
Spindle Speed 0~24000RPM
Driving System Stepper System
Voltage AC220/50/60Hz(Option :380V)
Command Language G code
Operating System DSP System(Option :Mach 3 PC Software)
