Jinan FASTCNC High Precision Flat Bar Punching Machine Angle Tower Use Steel Equipment Price

Place of Origin Jinan China
Brand Name FAST
Certification ISO9001
Model Number BCJ400
Minimum Order Quantity 1 SET
Price USD70000~75000/SET
Packaging Details Film
Delivery Time 60DAYS
Payment Terms L/C, T/T
Supply Ability 300SETS/YEAR
Product Details
Processing Width Of Flat Steel (mm) 50-400 Max. Cutting Thickness (mm) 25
Max. Punching Diateter (mm) φ32 Punching Force (kN) 1600
Quantity Of CNC Axes 2 Feeding Speed (m/min) 0-60 Stepless Adjustable
Average Of Cutting Speed (times/min) 20 Total Weight (Ton) 13
Overall Dimension L*W*H (mm) 28000*6000*2600 CNC OR NOT CNC
You can tick the products you need and communicate with us in the message board.
Name Specification
Color Black & White
Controlling System Language English (Option: Russia)
Leave a Message
Name Specification
Product Description

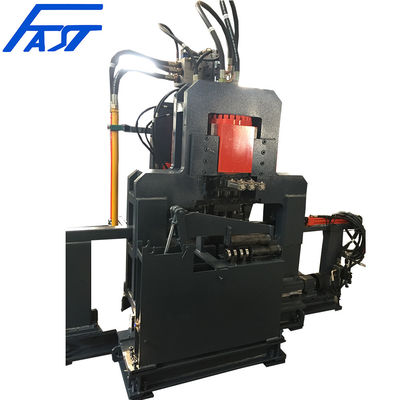

High Precision Flat Bar Punching Machine Angle Tower Use Steel Equipment Price

Jinan FASTCNC High Precision Flat Bar Punching Machine Angle Tower Use Steel Equipment Price 0



APPLICATION

This machine is used for automatic punching, cutting and marking of flat steel.



COMPOSITION

This machine is composed by material platform, lifting loading car, CNC loading conveyor route, CNC loading conveyor/car, Punching unit, Shearing unit, Unloading conveyor route, Hydraulic pressure system, controlling system.



FEATURES:

● Controlling system: computer plus PLC controls with functions of fault diagnosis, testing, alarm.

● Program way:Keyboard and mouse input,USB interface input,network interface input,CAD sample software port input

● Precision:meets the requirements of GB2694-2003.

● Main electrical components hydraulic and pneumatic valve are of international well-known brands.

● Integrated with hydraulic, pneumatic and mechanical elements, which are imported world-class components.

● Displaying the drawing of workpieces.

● Easy programing- can directly use the program data by sample software.



TECHNICAL DATA

Model BCJ80 BCJ400 BCJ500
Processing Width of Flat Steel (mm) 40-80 50-400 60-500
Max. Cutting Thickness (mm) 10 25 15
Max. Punching Diateter (mm) φ10.5 φ32 φ40
Punching Force (kN) 400 1600 1200
Quantity of Station 1 (option 2 or 3) 1 (option 2 to 6) By Customers Request 1 (option 2 to 7) By Customers Request
Cutting Force (kN) 400 2000 1600
Quantity of CNC Axes 1 2 2
Feeding Speed (m/min) 0-60 Stepless Adjustable
Average of Cutting Speed (times/min) 30 20 25
Total Weight (Ton) 4 13 11
Overall Dimension L*W*H (mm) 16000*2000*2000 28000*6000*2600 26000*5000*2600



★ All of these models can be customized according to customer requirements.
