China Top3 Manufacturer CNC Flat Steel Hole Punching And Shearing Machine Shearing Machine Channel Steel Punching Machin
Condition | New | Warranty | 12 Months |
---|---|---|---|
Voltage | 380V | After-sales Service Provided | Overseas Service Provided |
After Warranty Service | Online Support | Machinery Test Report | Provided |
Marketing Type | New Product 2023 | Marking Force | 630kN |
Cutting Force | 1000kN | Punching Force | Web630KN,Flange 630kN |
Name | Specification | |
---|---|---|
Color | Black & White | |
Controlling System Language | English (Option: Russia) |
Factory Price CNC Flat Steel Hole Punching And Shearing Machine Channel Steel Shearing Machine Punching Production Line CPS300
APPLICATIONS
This machine is mainly used for punching and cutting of channel steel, flat steel and C-shaped steel (C-shaped steel cannot be cut). It is a high-efficiency CNC automatic processing equipment for elevators, road construction machinery, granaries, railways, grids and other industries.

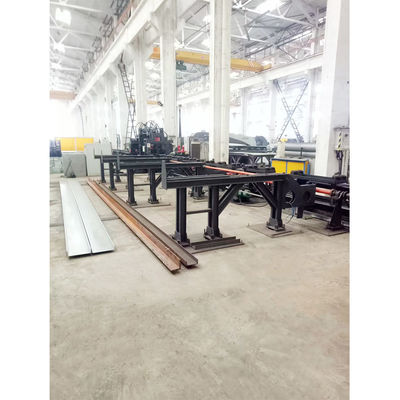

The production line consists of conveyors, Feeding manipulator, CNC loading channel, CNC trolley, Web punching &marking unit, Flange punching unit, Cutting unit, Offloading channel, Hydraulic power station, and CNC control system.
There is a centering mechanism on the conveyors and the CNC loading channel. It ensures that workpieces of different specifications are centered and conveyed.
The CNC trolley is used to clamp the workpiece and digitally convey and position it.
The three-dimensional punching machine consists of Web punching unit, Left flange punching unit, and right flange punching unit.
FEATURES
1. The 3 punching units can be independently controlled, which can be punched on three sides or on one or two sides.
2. The flexible automatic production line is suitable for the processing of various specifications of channel steel and any number of rows of holes.
3. The hydraulic power station has sufficient flow and it is equipped with an accumulator to ensure the flow of high-speed punching.
4. The processing program can be input by the keyboard, or the CAD graphics can be automatically converted into the processing program through the automatic conversion software.
5. The software interface is friendly, the programming software and automatic conversion software can be installed in any office computer independently of the host device, and realize remote programming, which can be directly copied or transferred to the device for use through the network.
6. It has the function of converting AUTOCAD graphics into working programs.
7. Reasonable electrical control system, equipped with Lenovo computer, 6-axis control is stable and reliable, and easy to operate.
8. High class components. Hydraulic components, all electrical components (including buttons, switches, etc.), ball screws, and linear guides are all products of well-known companies at home and abroad.
TECHNICAL DATA
Item Name | Unit | Specifications | |
Working Size
|
Channel | mm |
120×53-300×100 (Punch on 3 sides) 80×43,100×48 only punch Web |
C Profile | mm | Width 120-300,Thickness 2-5 | |
Flat Steel | mm |
Width120-300,Thickness 5-12, Flange is above 50mm height, can punch flange |
|
Max. Length | mm | 2000-12000 | |
Punching | Punching Force | KN | Web630,Flange 500 |
Punching Head Qty | PC | Each 1 Left& Right,Up 3,Total 5PCS | |
Continuous Punching Times | /min | 40 | |
Left& Right Movement Range of Web Punching t | mm | -130~+130mm | |
Upper&Bottom Movement Range of Flange Punching | mm | 30-70mm | |
Left& Right Movement Range of Flange Punching | mm | 100 | |
Web Punching Diameter Range | mm | Ф6-Ф26 | |
Flange Punching Diameter Range | mm | Ф6-Ф26 | |
Cutting | Cutting Force | KN | 1000 |
Cutting Mode | Double blade cut | ||
Marking | Marking Force | KN | 630 |
Group Number | Group | 4 | |
Number | PC | 10 | |
Size | mm | 10X14X20 | |
Precision | Hole Tolerance With Hole Group | mm | ±0.5 |
Hole Tolerance Between Hole Group | mm | ±0.75 | |
Cut Length Error | mm | ±1.0 | |
Compressed Air Pressure | MPa | 0.5(Self-prepare) | |
Gripper Arm Movement Stroke (Forward Direction) |
mm | 12000 | |
Rack &Pinion Drive Servo Motor Power | KW | 4 | |
Outline Dimensions of Feeding Channel (L*W*H) |
mm | 17000×1750×1830 | |
Off-loading Channel Length | mm | 6000 | |
Total Power | KW | About 33 | |
Outline Dimension L×W×H | mm | 34000×4520×3120 | |
CAD drawings are automatically converted into control programs |
