CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line
CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line

Large Image :  CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: BJC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 65000~75000/set
Packaging Details: Film; plywood wooden cases
Delivery Time: 40~60days
Payment Terms: L/C, T/T
Supply Ability: 300sets/year
Detailed Product Description
Condition: New Warranty: 1 Year
Voltage: 380V Certificate: ISO9001
Function: Cutting Punching Marking Port: Qingdao Port
MOQ: 1 SET After Sale Service: 24 Online Service
Material: Flat Bar Brand: FAST

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 0

APPLICATION

This machine is used for automatic punching, cutting and marking of flat steel.



COMPOSITION

This machine is composed by material platform, lifting loading car, CNC loading conveyor route, CNC loading conveyor/car, Punching unit, Shearing unit, Unloading conveyor route, Hydraulic pressure system, controlling system.



FEATURES:

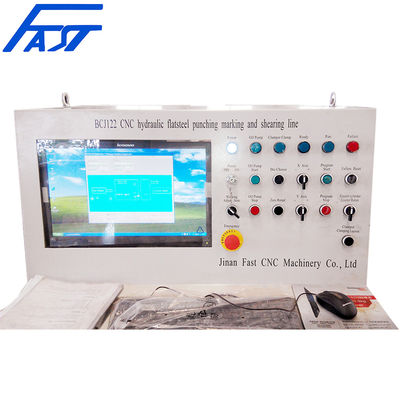

● Controlling system: computer plus PLC controls with functions of fault diagnosis, testing, alarm.

● Program way:Keyboard and mouse input,USB interface input,network interface input,CAD sample software port input

● Precision:meets the requirements of GB2694-2003.

● Main electrical components hydraulic and pneumatic valve are of international well-known brands.

● Integrated with hydraulic, pneumatic and mechanical elements, which are imported world-class components.

● Displaying the drawing of workpieces.

● Easy programing- can directly use the program data by sample software.



TECHNICAL DATA

Model BCJ80 BCJ400 BCJ500
Processing Width of Flat Steel (mm) 40-80 50-400 60-500
Max. Cutting Thickness (mm) 10 25 15
Max. Punching Diateter (mm) φ10.5 φ32 φ40
Punching Force (kN) 400 1600 1200
Quantity of Station 1 (option 2 or 3) 1 (option 2 to 6) By Customers Request 1 (option 2 to 7) By Customers Request
Cutting Force (kN) 400 2000 1600
Quantity of CNC Axes 1 2 2
Feeding Speed (m/min) 0-60 Stepless Adjustable
Average of Cutting Speed (times/min) 30 20 25
Total Weight (Ton) 4 13 11
Overall Dimension L*W*H (mm) 16000*2000*2000 28000*6000*2600 26000*5000*2600



★ All of these models can be customized according to customer requirements.


DETAIL IMAGES

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 1

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 2

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 3

SAMPLES

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 4

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 5



CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 6

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 7

WHY CHOOSE US

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 8

COMPANY PROFILE

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 9

WORKSHOP

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 10

CUSTOMER VISIT

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 11

FAQ

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 12

CERTIFICATE

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 13

PACKING AND SHIPPING

CNC Flat Steel Punching And Shearing Line Model BJC 122,Flat Steel Punching Line,Flat Steel Shearing Line 14
