4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale

I'm Online Chat Now
Certification
China Jinan FAST CNC Machinery Co., Ltd certification
China Jinan FAST CNC Machinery Co., Ltd certification
To:Jinan FAST CNC Machinery PLC Dear Sir, With the letter we would like to thank for your cooperation in the successful installation, testing and commissioning of High Speed CNC Drill Of First in its kind Ethiopia , that would enable us do many works especially sugar product tube plate holes of various deameters and thickness. ... With Regards

—— Mr. Begall

4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale

4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale
4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale 4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale 4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale 4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale 4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale

Large Image :  4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale Get Best Price

Product Details:
Place of Origin: Jinan China
Brand Name: FAST
Certification: ISO9001
Model Number: E2-1325C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 100~20000/set
Packaging Details: plywood cases
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300sets/year
Detailed Product Description
Condition: New Warranty: 12 Months
Port: Qingdao Port MOQ: 1 Set
Service: 24 Hours Online Services Voltage: 380V
Certificate: ISO9001 CNC Or Not: CNC
Manufacture: OEM ODM Acceptable Transmission: X/Y Rack And Pinion Drive, Z Ball Screw Drive
Driving System: Panasonic/Delta Spindle Speed: 24000r/min

4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale

4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale 0



APPLICATIOINS

Well-suited for processing of fronts, pavements, balustrades, doors and windows, engravings, etc.



DECORATION

 solid wood, PAL, MDF, plastic, resins, composite materials, insulating panels, acrylic, PVC, hard materials, stone, glass Organic and non -ferrous metals (aluminium, copper, etc.)  etc.



FEATURES

Processing center for intensive use, with rotating shops with eight positions and rapid change.



FUNCTIONS

Routing, drilling, cutting, vertical and horizontal milling, smoothing, sanding etc. Using top mechanical and electronic components, for reliability and precision, servo motors and Japan Shimpo reducer and fast Italy tool changer , Syntec controlling systems, Frence low voltage electric components, with a Becker pump 250mc /h, or fixing with retractable clamps and pins. Steel frame and transmission Germany Electromagnetic HSD Italy 9.6kw, Linear tool magazine with eight positions Ready for axes four.



Optional: aggregate 5 +4





TECHNICAL DATA



Series E2-1325C E2-1530C E3-2040C
Travelling size 1260*2500*200mm 1570*3100*200mm 2100*4020*200mm
Working size 1240*2480*180mm 1550*3080*180mm 2050*4000*180mm
Table size 1230*2500mm 1560*3100 mm 2050*4020mm
Optional working
length
    3000/5000/6000mm
Transmission X/Y rack and pinion drive, Z ball screw drive

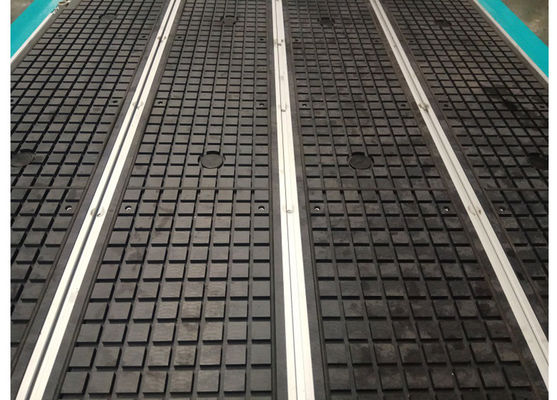

Table structure T-slot vacuum
Spindle power 9.6KW
Spindle speed 24000r/min
Travelling speed 35m/min
Working speed 20m/min
Tool magazine Lineare
Tool slots 8
Driving system Delta
Voltage AC380/3PH/50HZ
Controller Taiwan Syntec



DETAIL IMAGES

4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale 1

4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale 2

4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale 3

4x8 ft Automatic 3D Cnc Wood Carving Machine , 1325C Wood Working Cnc Router for Sale 4



 SAMPLES

F3-2030D CNC 3 Axes Heavy Duty ATC Router

F3-2030D CNC 3 Axes Heavy Duty ATC Router

F3-2030D CNC 3 Axes Heavy Duty ATC Router





FAQ

· Are you a Manufacturer or a Trading company?

Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.

Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc

· Do you have stock product ready to delivery?

In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.

· After an order is placed,when to delivery?

General 30 working days. It depends on specific items and item quantities.

Please check with sale manager for exact delivery time.

· What is the Warranty with After-sale Services?

12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.

After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.

· What about the product quality?

Each machine must be carried out quality examination and test when shipping and delivery goods
