China Cheap Cnc Hydraulic Steel Plate Punching Machine For Angle Tower Industry Model CJ201

Place of Origin China
Brand Name FAST
Certification ISO9001
Model Number CJ201
Minimum Order Quantity 1 set
Price USD 34000~40000/ set
Packaging Details Film;plywood wooden cases
Delivery Time 15~20days
Payment Terms L/C, T/T
Supply Ability 300sets/year
Product Details
Condition New Max. Size Of Work Piece L*W (mm) 1500*1500
Max. Diameter Of Punching (mm) Φ50 Plate Thickness Of Punching (mm) 5~30
Color Grey Punching Force (kN) 2000kN
Precision Accordance With GB2694-2003 Die-Stations 1
Min. Distance Between Hole And Plate Edge (mm) 25-35, Φ≤37mm; Warranty 1 Year
Leave a Message
Product Description

200Ton CNC Hydraulic Punchine Stamping Machine For Metal Plate Model CJ201 For Sale

China Cheap Cnc Hydraulic Steel Plate Punching Machine For Angle Tower Industry Model CJ201 0

APPLICATION

This machine is used for punching and marking on connecting plates in iron tower and steel structure industries. It can also be used for punching and marking of sheet metal processing in other industries.



FEATURES



  • The machine body is a C-shaped steel plate welded structure, which has good rigidity and large processing space. This machine is equipped with three mold positions (including a marking workstation. The mold position switching is performed automatically.
  • The clamping system can adapt to different thicknesses workpieces, with a reference zero stop. The workpiece is supported by a rolling ball table.
  • The operation of X-axis and Y-axis is driven by servo motor and ball screw. Dual-axis numerical control system controls punching position. The whole processing process is automatic. The operator inputs the size of the workpiece into the computer, which can be called repeatedly in the future;
  • Adopting numerical control system, servo motor feeding, high efficiency, stable workpiece punching accuracy;
  • The main functional components adopt modular assembly, which is convenient for maintenance;
  • Easy programming, input hole size, position, number of workpieces. The operator can also use the program generated by the lofting software, or adopt CAD/CAM direct conversion, providing network port, can share data resources with technical departments to form a local area network;
  • With fault self-diagnosis function;
  • Punching and marking can be realized on the same board; it improves production efficiency and reduces labor intensity of workers;
  • Key hydraulic, pneumatic and electrical components are imported;
  • The hydraulic station adopts water cooling.

TECHNICAL DATA



Model CJ80

CJ161/

CJ163

CJ201/

CJ202/

CJ203

CJ301
Max. Size of Work Piece L*W (mm) 4000*1800 1500*800 1500*1500 1850*1850
Max. diameter of punching (mm) Depends on Workpiece Thickness Φ50 Φ50 Φ60
Plate Thickness of Punching (mm) 2~10 5~25 5~30 5~30
Punching Force (kN) 800 1600 2000 3000
Marking Force (kN) 800 None None None

Min. Distance Between Hole And Plate Edge (mm)







20 30 25-35, Φ≤37mm; 35~50,37mm<Φ≤60mm

Dimensions of Characters (mm)



14*10*12 None None None

Quantity of

Characters

14 None None None
Die-Stations

1 ~ 7

By Customer’s Request

1/3 1/2/3 1
Precision Accordance with GB2694-2003 Accordance with GB2694-2003 Accordance with GB2694-2003 Accordance with GB2694-2003



Model CJ80

CJ161/

CJ163

CJ201/

CJ202/

CJ203

CJ301
Max. Size of Work Piece L*W (mm) 4000*1800 1500*800 1500*1500 1850*1850
Max. diameter of punching (mm) Depends on Workpiece Thickness Φ50 Φ50 Φ60
Plate Thickness of Punching (mm) 2~10 5~25 5~30 5~30
Punching Force (kN) 800 1600 2000 3000
Marking Force (kN) 800 None None None

Min. Distance Between Hole And Plate Edge (mm)







20 30 25-35, Φ≤37mm; 35~50,37mm<Φ≤60mm

Dimensions of Characters (mm)



14*10*12 None None None

Quantity of

Characters

14 None None None
Die-Stations

1 ~ 7

By Customer’s Request

1/3 1/2/3 1
Precision Accordance with GB2694-2003 Accordance with GB2694-2003 Accordance with GB2694-2003 Accordance with GB2694-2003



All of these models can be customized according to customer requirements.



DETAIL IMAGES

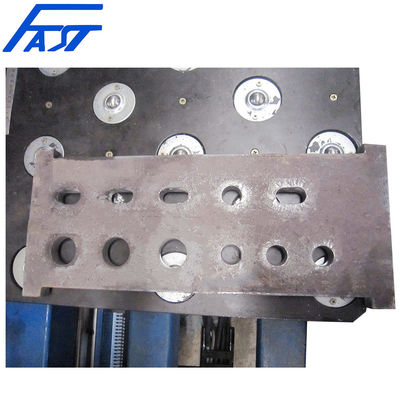

China Cheap Cnc Hydraulic Steel Plate Punching Machine For Angle Tower Industry Model CJ201 1

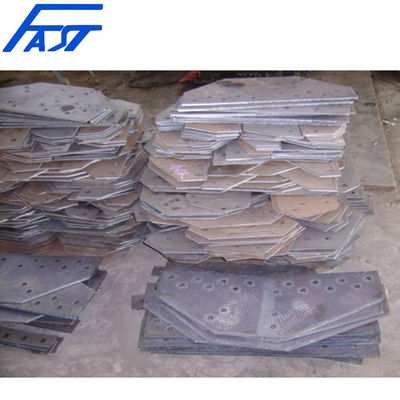

China Cheap Cnc Hydraulic Steel Plate Punching Machine For Angle Tower Industry Model CJ201 2
