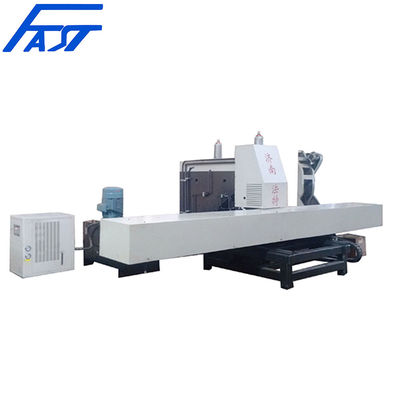

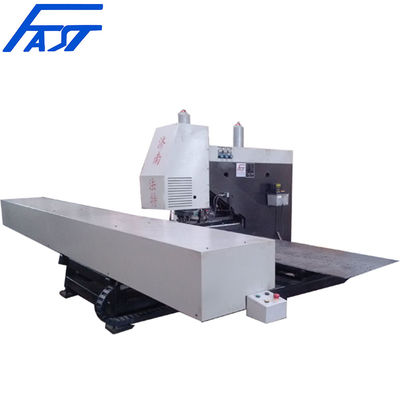

High Speed CNC Hydraulic Punching Machine For Connection Boards With Protective Cover Model CJ100

High Speed CNC Hydraulic Punching Machine For Connection Boards With Protective Cover Model CJ100
High Speed CNC Hydraulic Punching Machine For Connection Boards With Protective Cover Model CJ100 High Speed CNC Hydraulic Punching Machine For Connection Boards With Protective Cover Model CJ100 High Speed CNC Hydraulic Punching Machine For Connection Boards With Protective Cover Model CJ100 High Speed CNC Hydraulic Punching Machine For Connection Boards With Protective Cover Model CJ100 High Speed CNC Hydraulic Punching Machine For Connection Boards With Protective Cover Model CJ100 High Speed CNC Hydraulic Punching Machine For Connection Boards With Protective Cover Model CJ100

Large Image :  High Speed CNC Hydraulic Punching Machine For Connection Boards With Protective Cover Model CJ100 Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: CJ100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 29000~32000/set
Packaging Details: Film; plywood wooden cases
Delivery Time: 40days
Payment Terms: L/C, T/T
Supply Ability: 300sets/year
Detailed Product Description
Condition: New Warranty: 12 Months
Port: Qingdao Port Min. Order: 1 Set
Funtion: Puncing Model: CJ100
CNC Or Not: CNC Precision: Accordance With GB2694-2003
Programming Mode: Input By Keyboard, RS232 Interface, Floppy Disk And USB Interface Overall Dimension L*W*H (mm): 3200*2520*1875

High Speed CNC Hydraulic Punching Machine For Connection Boards With Protective Cover Model CJ100

High Speed CNC Hydraulic Punching Machine For Connection Boards With Protective Cover Model CJ100 0

APPLICATION

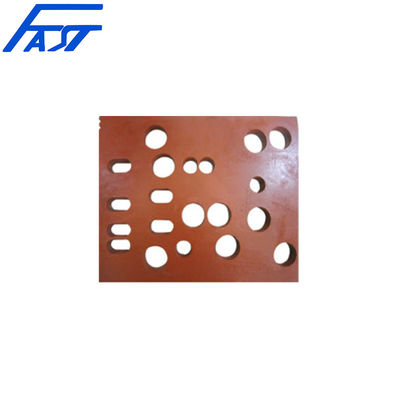

This machine is used for punching and marking on connecting plates in iron tower and steel structure industries. It can also be used for punching and marking of sheet metal processing in other industries.



FEATURES

  • The machine body is a C-shaped steel plate welded structure, which has good rigidity and large processing space. This machine is equipped with three mold positions (including a marking workstation. The mold position switching is performed automatically.
  • The clamping system can adapt to different thicknesses workpieces, with a reference zero stop. The workpiece is supported by a rolling ball table.
  • The operation of X-axis and Y-axis is driven by servo motor and ball screw. Dual-axis numerical control system controls punching position. The whole processing process is automatic. The operator inputs the size of the workpiece into the computer, which can be called repeatedly in the future;
  • Adopting numerical control system, servo motor feeding, high efficiency, stable workpiece punching accuracy;
  • The main functional components adopt modular assembly, which is convenient for maintenance;
  • Easy programming, input hole size, position, number of workpieces. The operator can also use the program generated by the lofting software, or adopt CAD/CAM direct conversion, providing network port, can share data resources with technical departments to form a local area network;
  • With fault self-diagnosis function;
  • Punching and marking can be realized on the same board; it improves production efficiency and reduces labor intensity of workers;
  • Key hydraulic, pneumatic and electrical components are imported;
  • The hydraulic station adopts water cooling.



TECHNICAL DATA

Model CJ103 CJ104 CJ121 CJ123
Max. Size of Work Piece L*W (mm) 1500*800 1500*800 1500*800 1500*800
Max. diameter of punching (mm) Φ32 Φ32 Φ40 Φ40
Plate Thickness of Punching (mm) 5~20 5~25 5~25 5~25
Max. diameter of Drilling   Φ50
Punching Force (kN) 1000 1000 1200 1200
Marking Force (kN) 1000 1000 1200 1200
Min. Distance Between Hole And Plate Edge (mm) Punching 25 25

30



30
Drilling   Depends on hole diameter
Dimensions of Characters (mm) 14*10*20 14*10*20 14*10*20 14*10*20

Quantity of

Characters

14/18 14/18 14/18 14/18
Die-Stations 3 4 1 3
Feeding Speed of Drilling (mm/min)   20~280
Strok of Drilling Spindle (mm)   180
Rotation Speed of Drilling Spindle (r/min)   100~750
Precision Accordance with GB2694-2003 Accordance with GB2694-2003 Accordance with GB2694-2003 Accordance with GB2694-2003
Programming Mode Input by keyboard, RS232 interface, floppy disk and USB interface
Overall Dimension L*W*H (mm) 3200*2520*1875 3500*2520*2600 3700*2520*1875 3700*2520*1875


All of these models can be customized according to customer requirements.
