Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower

I'm Online Chat Now
Certification
China Jinan FAST CNC Machinery Co., Ltd certification
China Jinan FAST CNC Machinery Co., Ltd certification
To:Jinan FAST CNC Machinery PLC Dear Sir, With the letter we would like to thank for your cooperation in the successful installation, testing and commissioning of High Speed CNC Drill Of First in its kind Ethiopia , that would enable us do many works especially sugar product tube plate holes of various deameters and thickness. ... With Regards

—— Mr. Begall

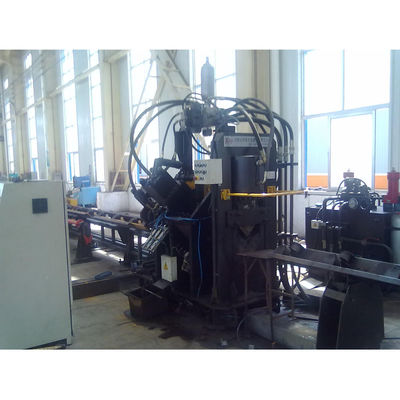

Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower

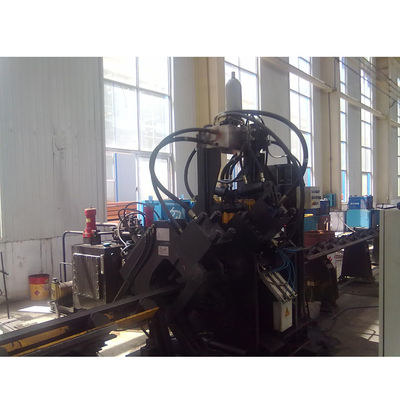

Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower
Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower

Large Image :  Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: FAST
Certification: ISO9001
Model Number: JX125
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 70000~80000/SET
Packaging Details: Film; Plywood
Delivery Time: 40~60days
Payment Terms: L/C, T/T
Supply Ability: 300SETS/YEAR
Detailed Product Description
Condition: New Warranty: 12 Months
Port: Qingdao Port MOQ: 1 SET
Service: 24 Hours Online Services Voltage: 380V
Certificate: ISO9001 CNC Or Not: CNC
Manufacture: OEM ODM Acceptable Dimensions: 23×6.5×2.5

CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125

Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower 0

APPLICATION

This machine is mainly used for angle steel marking, punching, and shearing special machine for fully automated production. It is widely used in power towers, communication towers, three-dimensional garages, steel structure buildings and other industries.



FEATURES

  • Integrated machine with mechanical, electrical and hydraulic elements;
  • There are three sets of punching dies on the two wings of the angle steel. All the holes on the angle steel can be processed in one pass;
  • Single-edged cutting saves raw materials and cuts the surface neatly;
  • The quasi-distance can be set arbitrarily, and the number of punching rows is not limited;
  • The marking unit adopts a closed bed structure, which has good rigidity. Four groups of selected programming on the upper marking box. The marking distance can be set at will;
  • The hydraulic system mainly completes punching, cutting, marking, pressing and marking box interchanging;
  • The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
  • The CNC feeding trolley is driven by a servo motor with high positioning accuracy. The structure adopts a linear guide rail and hard racks, which has a long life and a more stable performance;
  • There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
  • The main electrical control components and hydraulic and pneumatic components are imported accessories;
  • Providing G-code software program that can directly convert CAD graphics into executable machine ;
  • Graph display of processed parts;
  • With fault self-diagnosis function.


TECHNICAL DATA

Item Name Unit Specifications
1 Angle steel placement type

V placement

(corner down)

2 Processing angle steel range mm 45x45x4- 125x125x12
3 Maximum length of blank mm 12000
4 Processing criteria mm 25-100
5 Feeding speed m/min Max.60
6 Control method   CNC
7 Data input method   Keyboard, mouse, USB
8 File format   DWG,DXF
9 Number of CNC axes   3
10 Electricity environment   3Ph,380V,50Hz,0-45ºC
11 Dimensions m 23×6.5×2.5


DETAIL IMAGES

Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower 1





Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower 2



Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower 3

Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower 4

WHY CHOOSE US

Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower 5

COMPANY PROFILE

Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower 6

WORKSHOP

Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower 7

CUSTOMER VISIT

Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower 8

FAQ

Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower 9

CERTIFICATE

Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower 10

PACKING AND SHIPPING

Jinan CNC Controlled Automation Angle Steel Marking, Punching And Cutting Processing Line Model JX125 For Iron Tower 11
