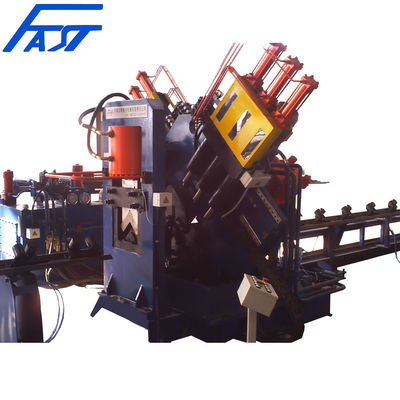

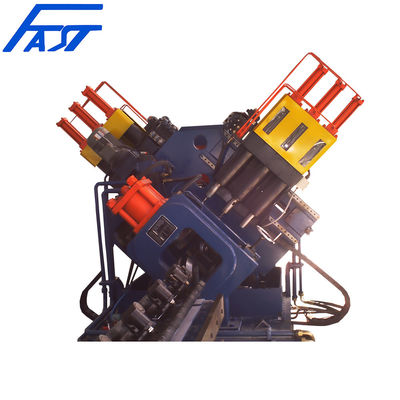

Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532

Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532
Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532

Large Image :  Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: HSAD2532
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 68000~75000 USD
Packaging Details: FILM
Delivery Time: 40~60 days
Payment Terms: L/C, T/T
Supply Ability: 300sets/year
Detailed Product Description
Material: Angles Function: Drilling And Marking
Speed: High-Speed Angle Size (mm): 100x100x10~250x250x32
Max. Length Of Blank (m): 14 Marking Force (kN): 1000
Marking Unit Type: Closed -type Character Size (mm): 14*10*20
Max. Feeding Speed(m/min): 4 Spindle Tapper: BT40
Overall Dimension (m): About 31x7x2.9

Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model JX2532

Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 0

APPLICATION

This machine is used for drilling and marking large-size iron towers and high-strength angle steel in transmission lines. All the holes on the angle steel can be drilled in one pass, and the hole quality and position accuracy are high. It is a special machine for fully automated production.



FEATURES

  • Integrated machine with mechanical, electrical and hydraulic elements;
  • There is a drilling power head on each of the two wings of the angle steel. Each power head has a tool magazine. The tool magazine is equipped with 4 tools. The tool magazine is optional. All holes on the two wings of the angle steel can be processed in one pass;
  • The drilling spindle adopts high-precision BT40 spindle;
  • The drilling spindle can be used to clamp twist drills or hard alloy drills, which has a wide range of applications;
  • The quasi-distance can be set arbitrarily, and the number of punching rows is not limited;
  • The drilling spindle adopts BT40 precision spindle;
  • The marking unit adopts a closed bed structure, which has good rigidity. Four groups of selected programming on the upper marking box. The marking distance can be set at will;
  • The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
  • The CNC feeding trolley is driven by a servo motor with high positioning accuracy;
  • There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
  • The main electrical control components and hydraulic and pneumatic components are imported accessories;
  • Providing G-code software program that can directly convert CAD graphics into executable machine ;
  • Graph display of processed parts;
  • With fault self-diagnosis function.





COMPOSITION

Material platform Cross feeding conveyor
CNC feeding trolley CNC conveyor
Marking unit Drilling unit
Retainer(supporting material) Outfeeding conveyor
Hydraulic station Automatic lubrication system
Mist cooling system Controlling system



TECHNICAL DATA

Model HSAD2532 HSAD3635
Angle Size (mm) 100x100x10~250x250x32 140x140×10~360×360×35
Max. Length of blank (m) 14
Marking Force (kN) 1000
Marking Unit Type Closed -type
Number of Marking Groups (PC) 4
Qty. of Character in Each Character Group (Piece) 18
Character Size (mm) 14*10*20
Shearing Function (Optional) ≤200
Back mark (mm) 48~220 50~330
Each Side Number (PC) 1
Tool Magazine On Each Side Number (PC) 1
Number of Tools In Each Magazine (Optional) 4-6
Max. Feeding speed(m/min) 40
Spindle Tapper BT40
Max. Speed Of Drilling Spindle(r/min) 3000
Max. Angle Infeed Speed (m/min) 40
Max. Moving Speed Of Power Head Sliding Plate(m/min) 10
Power Head Max. Feed Speed(m/min) 0~5
Overall Dimension (m) About 31x7x2.9 About 32×7.5×3



DETAIL IMAGES

Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 1

Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 2

Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 3

Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 4

Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 5





Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 6



Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 7

Jinan FAST CNC High-Speed Drilling And Marking Process Line For Angles Model HSAD2532 8
