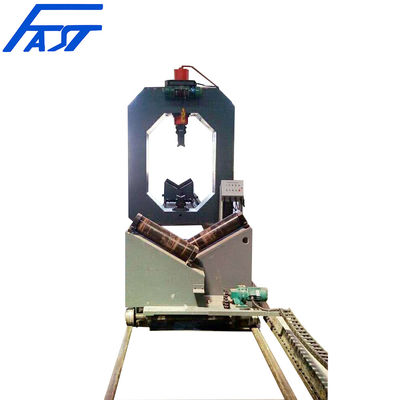

Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine

Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine
Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine

Large Image :  Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: XH150
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD10000~20000/set
Packaging Details: Film; plywood pallet
Delivery Time: 40~60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300sets/year
Detailed Product Description
Condition: New Warranty: 12 Months
Port: Qingdao Port MOQ: 1 SET
Service: 24 Hours Online Services Voltage: 380V
Certificate: ISO9001 CNC Or Not: CNC
Manufacture: OEM ODM Acceptable Overall Dimensions L×W×H (m): 28×6×6

Hydraulic Linking and Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine

Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine 0



APPLICATION

The machine is used for coiling or bending, pressing & linking of formed steel pipes in order to weld steel pipes easily. Also, it is used for linking and welding of round pipes, taper pipes and prism pipes. The machine has wide application in the petrochemical industry , electric power industry , shipbuilding industry and chemical industry, etc.



DETAILS

● This machine has main-cylinder on the top and equips one clamping cylinder on both sides. The clamping cylinder can go up and down. This can link various steel pipe with diameter between Ø500mm ~Ø1600mm.

● V-type worktable.

● Electric driving roller in the front and back of the machine. This dismisses the labors.

● The machine can straighten steel pipes by adding supports.

● Machine Body is A closed-frame Structure.



TECHNICAL DATA

Model XH150
Pressure of Upper Cylinder (kN) 1000/2500 (Used for alignment)
Stroke of Upper Cylinder (mm) 500
Pressure of Side Cylinder (kN) 250
Stroke of Side Sylinder (mm) 450
Scope of Steelpipe (mm) Φ500~Φ1500
Up & Down Position of Side Cylinder Auto adjustment
Adjustable Stroke (mm) 600
Adjustable Way of Steelpipe (mm) Manual or mechanical
Total Power of Motor (kW) 11/18.5
Overall dimensions L×W×H (m) 28×6×6

All of these models can be customized according to customer requirements.



DETAIL IMAGES

Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine 1

Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine 2

Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine 3

Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine 4

Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine 5

Hydraulic Linking And Straightening Machine For Formed Steel Pipe Model HX1500 And CS Conveyor Chain Machine 6
