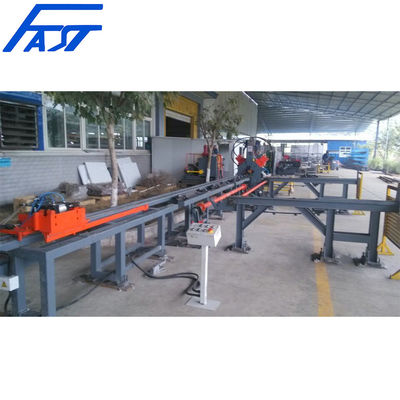

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price
China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price

Large Image :  China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: JX1010
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD 40000~42000/set
Packaging Details: Film; Plywood pallet
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300sets/year
Detailed Product Description
Condition: New Warranty: 12 Months
Port: Qingdao Port MOQ: 1 SET
Service: 24 Hours Online Service Voltage: 380V
Certificate: ISO9001 Weight: 14000Kg
Outline Size: About 22*7*2.4 Color: Grey

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 0

APPLICATION

This machine is mainly used for angle steel marking, punching, and shearing special machine for fully automated production. It is widely used in power towers, communication towers, three-dimensional garages, steel structure buildings and other industries.



FEATURES

  • Integrated machine with mechanical, electrical and hydraulic elements;
  • There are three sets of punching dies on the two wings of the angle steel. All the holes on the angle steel can be processed in one pass;
  • Single-edged cutting saves raw materials and cuts the surface neatly;
  • The quasi-distance can be set arbitrarily, and the number of punching rows is not limited;
  • The marking unit adopts a closed bed structure, which has good rigidity. Four groups of selected programming on the upper marking box. The marking distance can be set at will;
  • The hydraulic system mainly completes punching, cutting, marking, pressing and marking box interchanging;
  • The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
  • The CNC feeding trolley is driven by a servo motor with high positioning accuracy. The structure adopts a linear guide rail and hard racks, which has a long life and a more stable performance;
  • There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
  • The main electrical control components and hydraulic and pneumatic components are imported accessories;
  • Providing G-code software program that can directly convert CAD graphics into executable machine ;
  • Graph display of processed parts;
  • With fault self-diagnosis function.



COMPOSITION

Material platform Cross feeding conveyor
CNC feeding trolley CNC conveyor
CNC marking unit CNC punching unit
Retainer(supporting material) CNC cutting unit
Outfeeding conveyor Hydraulic station
Controlling system


TECHNICAL DATA

Model JX0707 JX1010-2 JX1010-3
Function Punching, Marking,Shearing
Angle Size (mm) 35*35*3~63*63*6 40*40*3~100*100*10 40*40*3~100*100*10
Max. Punching (D*T) (mm)

Φ26x6



Round hole Φ26x10

Slot hole 22x50

Punching Force (kN) 600 1000 1000
Marking Force (kN) 630 630 630
Shearing Force (kN) 1200 1200 1200
Max. Length of blank(m) 10 OR 12 10 OR 12 10 OR 12
Max.length of finished (m) 8 8 8
Qty. Of punching head on each side (pcs) 1OR 2 2 3
NO. of Character Group (Piece) 4 4 4
Character Size (mm) 14*10*20
Shearing modes Single blade
CNC Axes (Piece) 3
Feeding Speed of Angle (m/mm) 80
Programming Mode Lofting software or instruction programming
Overall Dimension (m)

About

17*6*1.6

About

22*7*2.4

About

22*7*2.4

Net Weight (kg) About 7000 About 14000 About 14500

All of these models can be customized according to customer requirements.


DETAIL IMAGES

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 1

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 2

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 3

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 4

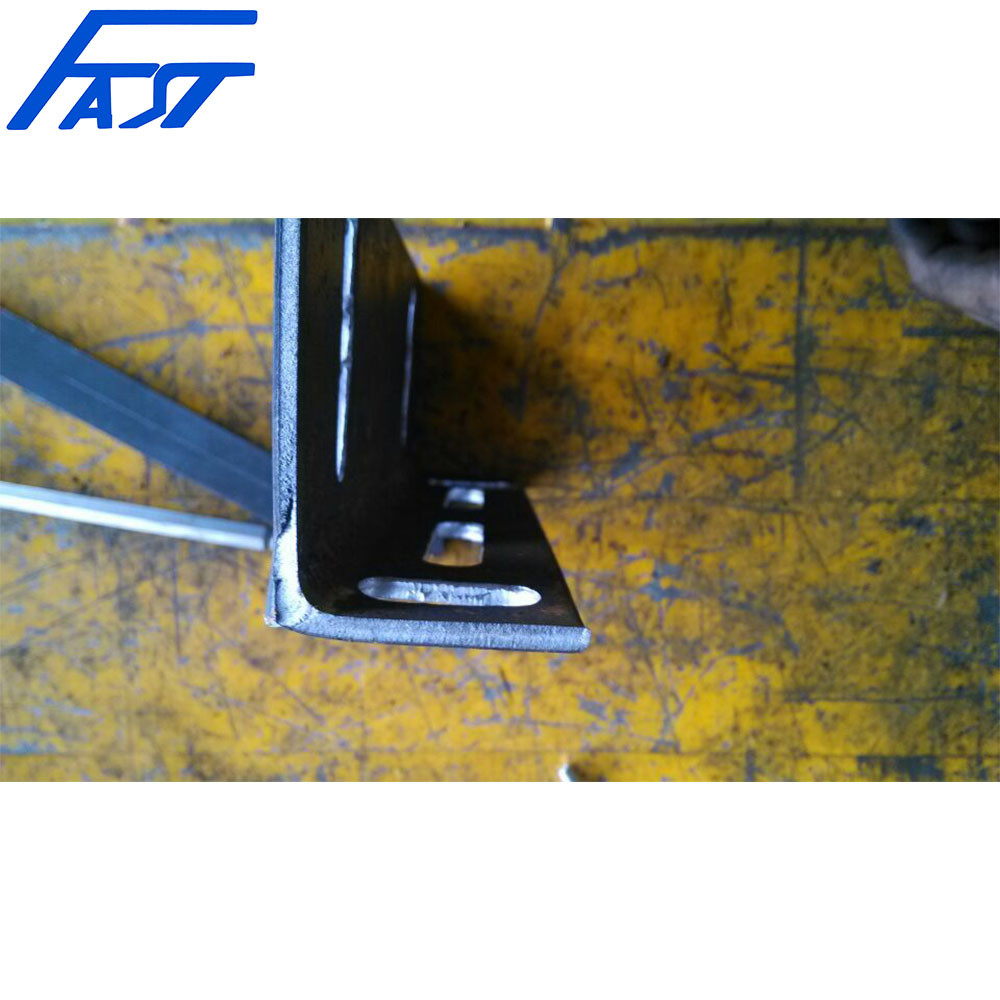

SAMPLES

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 5

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 6

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 7China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 8

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 9

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 10



China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 11

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 12

WHY CHOOSE US

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 13

COMPANY PROFILE

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 14

WORKSHOP

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 15

CUSTOMER VISIT

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 16

FAQ

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 17

CERTIFICATE

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 18

PACKING AND SHIPPING

China Suppliers CNC Angle Line Punching Marking Cutting Machinery JX1010 Price 19
