Automatic CNC Hydraulic Press & Marking Punching Press Machine For Joint Plate Metal CJ 103

I'm Online Chat Now
Certification
China Jinan FAST CNC Machinery Co., Ltd certification
China Jinan FAST CNC Machinery Co., Ltd certification
To:Jinan FAST CNC Machinery PLC Dear Sir, With the letter we would like to thank for your cooperation in the successful installation, testing and commissioning of High Speed CNC Drill Of First in its kind Ethiopia , that would enable us do many works especially sugar product tube plate holes of various deameters and thickness. ... With Regards

—— Mr. Begall

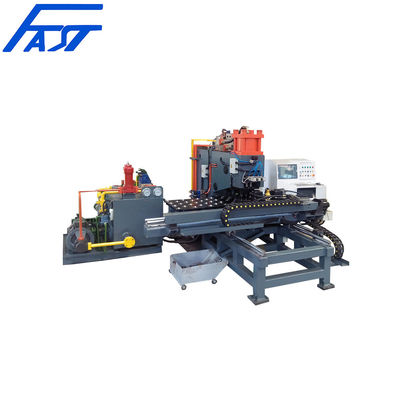

Automatic CNC Hydraulic Press & Marking Punching Press Machine For Joint Plate Metal CJ 103

Automatic CNC Hydraulic Press & Marking Punching Press Machine For Joint Plate Metal CJ 103
Automatic CNC Hydraulic Press & Marking Punching Press Machine For Joint Plate Metal CJ 103 Automatic CNC Hydraulic Press & Marking Punching Press Machine For Joint Plate Metal CJ 103 Automatic CNC Hydraulic Press & Marking Punching Press Machine For Joint Plate Metal CJ 103 Automatic CNC Hydraulic Press & Marking Punching Press Machine For Joint Plate Metal CJ 103 Automatic CNC Hydraulic Press & Marking Punching Press Machine For Joint Plate Metal CJ 103 Automatic CNC Hydraulic Press & Marking Punching Press Machine For Joint Plate Metal CJ 103

Large Image :  Automatic CNC Hydraulic Press & Marking Punching Press Machine For Joint Plate Metal CJ 103 Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: CJ103
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 10000USD~ 27000USD
Packaging Details: Film
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50Sets/months
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Condition: New
Application: Metal Voltage: 380v
Weight: 3000kg MOQ: 1 Set
Package: Film Port: Qingdao Port
Warranty: 12 Months Overall Dimension L*W*H (mm): 3200*2520*1875

CNC Hydraulic Press & Marking Punching Press Machine For Joint Plate Metal CJ 103
Automatic CNC Hydraulic Press & Marking Punching Press Machine For Joint Plate Metal CJ 103 0

APPLICABLE

This machine is used for punching and marking on connecting plates in iron tower and steel structure industries. It can also be used for punching and marking of sheet metal processing in other industries.



FEATURES

  • The machine body is a C-shaped steel plate welded structure, which has good rigidity and large processing space. This machine is equipped with three mold positions (including a marking workstation. The mold position switching is performed automatically.
  • The clamping system can adapt to different thicknesses workpieces, with a reference zero stop. The workpiece is supported by a rolling ball table.
  • The operation of X-axis and Y-axis is driven by servo motor and ball screw. Dual-axis numerical control system controls punching position. The whole processing process is automatic. The operator inputs the size of the workpiece into the computer, which can be called repeatedly in the future;
  • Adopting numerical control system, servo motor feeding, high efficiency, stable workpiece punching accuracy;
  • The main functional components adopt modular assembly, which is convenient for maintenance;
  • Easy programming, input hole size, position, number of workpieces. The operator can also use the program generated by the lofting software, or adopt CAD/CAM direct conversion, providing network port, can share data resources with technical departments to form a local area network;
  • With fault self-diagnosis function;
  • Punching and marking can be realized on the same board; it improves production efficiency and reduces labor intensity of workers;
  • Key hydraulic, pneumatic and electrical components are imported;
  • The hydraulic station adopts water cooling.



TECHNICAL DATA

Model CJ103 CJ104 CJ121 CJ123
Max. Size of Work Piece L*W (mm) 1500*800 1500*800 1500*800 1500*800
Max. diameter of punching (mm) Φ32 Φ32 Φ40 Φ40
Plate Thickness of Punching (mm) 5~20 5~25 5~25 5~25
Max. diameter of Drilling   Φ50
Punching Force (kN) 1000 1000 1200 1200
Marking Force (kN) 1000 1000 1200 1200
Min. Distance Between Hole And Plate Edge (mm) Punching 25 25

30



30
Drilling   Depends on hole diameter
Dimensions of Characters (mm) 14*10*20 14*10*20 14*10*20 14*10*20

Quantity of

Characters

14/18 14/18 14/18 14/18
Die-Stations 3 4 1 3
Feeding Speed of Drilling (mm/min)   20~280
Strok of Drilling Spindle (mm)   180
Rotation Speed of Drilling Spindle (r/min)   100~750
Precision Accordance with GB2694-2003 Accordance with GB2694-2003 Accordance with GB2694-2003 Accordance with GB2694-2003
Programming Mode Input by keyboard, RS232 interface, floppy disk and USB interface
Overall Dimension L*W*H (mm) 3200*2520*1875 3500*2520*2600 3700*2520*1875 3700*2520*1875



Model CJ80

CJ161/

CJ163

CJ201/

CJ202/

CJ203

CJ301
Max. Size of Work Piece L*W (mm) 4000*1800 1500*800 1500*1500 1850*1850
Max. diameter of punching (mm) Depends on Workpiece Thickness Φ50 Φ50 Φ60
Plate Thickness of Punching (mm) 2~10 5~25 5~30 5~30
Punching Force (kN) 800 1600 2000 3000
Marking Force (kN) 800 None None None

Min. Distance Between Hole And Plate Edge (mm)







20 30 25-35, Φ≤37mm; 35~50,37mm<Φ≤60mm

Dimensions of Characters (mm)



14*10*12 None None None

Quantity of

Characters

14 None None None
Die-Stations

1 ~ 7

By Customer’s Request

1/3 1/2/3 1
Precision Accordance with GB2694-2003 Accordance with GB2694-2003 Accordance with GB2694-2003 Accordance with GB2694-2003



All of these models can be customized according to customer requirements.
