Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia

I'm Online Chat Now
Certification
China Jinan FAST CNC Machinery Co., Ltd certification
China Jinan FAST CNC Machinery Co., Ltd certification
To:Jinan FAST CNC Machinery PLC Dear Sir, With the letter we would like to thank for your cooperation in the successful installation, testing and commissioning of High Speed CNC Drill Of First in its kind Ethiopia , that would enable us do many works especially sugar product tube plate holes of various deameters and thickness. ... With Regards

—— Mr. Begall

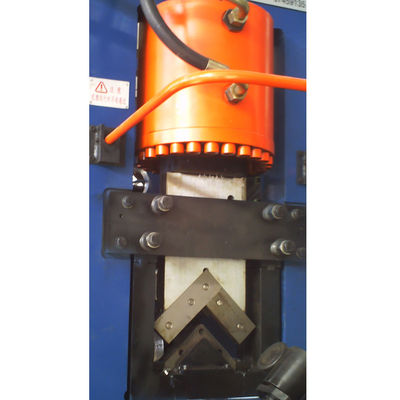

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia
Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia

Large Image :  Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: JX2532
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 70000~75000 / set
Packaging Details: Film
Delivery Time: 40~60 Days
Payment Terms: L/C, T/T,
Supply Ability: 300sets/year
Detailed Product Description
CNC Or Not: CNC Warranty: 12 Months
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Angle Size (mm): 100*100*8~250*250*32 Marking Force (kN): 1000
Max. Length Of Blank (m): 14 Max. Length Of Finished(m): 12
Overall Dimension (m): About 30*7*2.6 Net Weight (kg): 17000

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 0

APPLICATION

This machine is used for drilling and marking large-size iron towers and high-strength angle steel in transmission lines. All the holes on the angle steel can be drilled in one pass, and the hole quality and position accuracy are high. It is a special machine for fully automated production.



FEATURES

  • Integrated machine with mechanical, electrical and hydraulic elements;
  • There is a set of drilling spindles on the two wings of the angle steel. All the holes on the two wings of the angle steel can be processed in one pass;
  • Double-edged cutting can process harder angle steel; single-edged cutting saves raw materials and cuts the surface neatly;
  • The quasi-distance can be set arbitrarily, and the number of punching rows is not limited;
  • The marking unit adopts a closed bed structure, which has good rigidity. Four groups of selected programming on the upper marking box. The marking distance can be set at will;
  • The hydraulic system mainly completes punching, cutting, marking, pressing and marking box interchanging;
  • The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
  • The CNC feeding trolley is driven by a servo motor with high positioning accuracy;
  • There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
  • The main electrical control components and hydraulic and pneumatic components are imported accessories;
  • Providing G-code software program that can directly convert CAD graphics into executable machine ;
  • Graph display of processed parts;
  • With fault self-diagnosis function.



COMPOSITION

Material platform Cross feeding conveyor
CNC feeding trolley CNC conveyor
Marking unit Drilling unit
Retainer(supporting material) Outfeeding conveyor
Hydraulic station Automatic lubrication system
Mist cooling system Controlling system



TECHNICAL DATA

Model JX2532 JX3635
Angle Size (mm) 100*100*8~250*250*32 140*140*12~360*360*35
Marking Force (kN) 1000
Max. Length of blank (m) 14
Max. Length of finished(m) 12
Qyt. of Drill On Each Side (Piece) 3
Qty. of character group 1
Qty. of Character in Each Character Group (Piece) 18
Character Size (mm) 14*10*20
Back mark (mm) 20~220 20~340
Spindle rotation speed (r/min) 180~760, Transducer stepless adjustment
Max. Feeding speed(m/min) 40
Max. Drilling Diameter (mm) Φ40
Stroke of spindle (mm) 240 220
Qty. Of CNC Axes 3
Programming Mode Lofting software of manual program
Working Accuracy Accordance with GB2694-2003
Overall Dimension (m) About 30*7*2.6 About 32*6.5*2.3m
Net Weight (kg) 17000 18800



DETAIL IMAGES

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 1

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 2

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 3

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 4

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 5





Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 6



Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 7

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 8

WHY CHOOSE US

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 9

COMPANY PROFILE

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 10

WORKSHOP

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 11

CUSTOMER VISIT

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 12

FAQ

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 13

CERTIFICATE

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 14

PACKING AND SHIPPING

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia 15
