Best Selling Small CNC Metal Drilling Milling Machine With Low Price

Place of Origin China
Brand Name FAST
Certification ISO9001
Model Number PZ1610
Minimum Order Quantity 1 set
Price USD 25000~28000/set
Packaging Details Film;plywood wooden cases
Delivery Time 40days
Payment Terms L/C, T/T, Western Union
Supply Ability 300sets/year
Product Details
Condition New Warranty 1 Year
Port Qingdao Port Voltage 380V
Max. Workpiece Dimension(mm) 1600×1000mm(1PC) 1000×800mm(2PCS) 800×500mm(4PCS) Max Workpiece Thickness 100mm/80mm
CNC Axes X、Y、Z Axes Positioning Speed 8m/min
Chip Remover Power 0.37kW Outline Dimension(L*W*H) About 3000X2000X2500mm
You can tick the products you need and communicate with us in the message board.
Name Specification
Color Black & White
Controlling System Language English (Option: Russia)
Leave a Message
Name Specification
Product Description

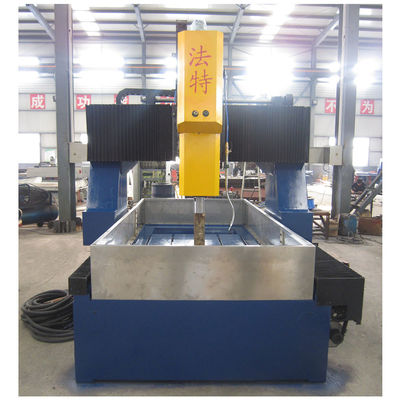

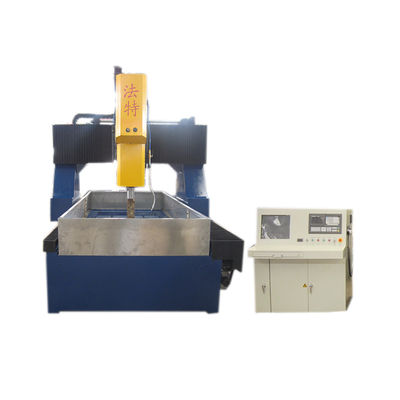

 Best Selling Small CNC Metal Drilling Milling Machine With Low Price

Best Selling Small CNC Metal Drilling Milling Machine With Low Price 0

APPLICATION

This machine is mainly suitable for drilling connecting plates and foundation plates in steel structure, iron towers, bridges, mechanical processing and other industries. It can also be used for drilling flanges.



FEATURES

1. This machine is fully digitally controlled. CNC system controls servo automatically position and feed to ensure the accuracy of the drilling position;

2. High drilling accuracy CNC drilling power head. It is easy to quantify the depth; It has the functions of drilling blind holes, through holes, reaming and chamfering;

3. Four processing areas, 12 hydraulic clamps. Four groups of workpieces can be clamped, and workpieces can be loaded and unloaded while drilling;

4. Hydraulic clamping locks, not shaking when the power head and gantry drilling;

5. Linear guide line and ball screw fully protected and not exposed;

6. Flat chain automatic chip conveyor & Circulating cooling device;

7. Automatic lubrication device & Protection device. All moving (rotating) parts are automatically lubricated regularly;

8. Anti rusty stainless steel guardrail around the workbench;

9. Gantry beams & columns are widened and all steel plate welded, which is with good rigidity.

10. Full digital numerical control system control:

-Chip breaking function; Tool lifting chip removal function;

-Automatically converting CAD graphics into processing programs function;

- Adjusting the feed and speed according to different apertures,

-The standard numerical control system adopts the German Siemens numerical control system. It is equipped with a USB interface and an LCD liquid crystal display. The operation interface has functions such as human-machine dialogue, error compensation, and automatic alarm.

-Hole position preview and re-inspection function.



COMPOSITION

Worktable Movable Gantry
Drilling Power Head Automatic Chip Conveyor
Circulating Cooling Device Automatic Lubrication
Hydraulic System Pneumatic System
Electrical System


TECHNICAL DATA

MODEL PZ1610 PZ2012 PZ2016
Max. Workpiece Dimension(mm)

1600×1000mm(1PC)

1000×800mm(2PCS)

800×500mm(4PCS)

2000×1200mm(1PC)

1200×1000m(2PCS)

1000×600mm(4PCS)

2000×1600mm(1PC)

1600×1000m(2PCS)

1000×800mm(4PCS)

Max Workpiece Thickness 100mm/80mm
Drilling Power Head Taper Morse 4# /5#
Max. Drilling Diameter Φ50mm/Φ60mm
Rotate Speed 100—560r/min(Inverter Stepless Speed Change)
Stroke 240mm
Motor Power 7.5kW
Hydraulic Clamp Clamp Thickness 15-80/ 35-100mm
Clamp Quantity 14 (12 workbenches, 2 bed lock cylinders)
Clamp Force 10kN/PC
CNC Axes X,Y,Z
Axes Positioning Speed 8m/min
Chip Remover Power 0.37kW
Cooling System Forced loop(Water-cooling)
Hydraulic System System Pressure 5MPa
Oil Tank Capacity 110L
Outline Dimension(L*W*H) About 3000X2000X2500mm About 3500X2400X2500mm About 3500X2800X2500mm



All of these models can be customized according to customer requirements.
