Automatic PZS2020 3030 Spindle BT40 Metal CNC Drilling Machine For Sieve Plate

Place of Origin Jinan China
Brand Name FAST
Certification ISO9001
Model Number PZS2020
Minimum Order Quantity 1 set
Price 10000USD~ 27000USD
Packaging Details Film
Delivery Time 30days
Payment Terms T/T, L/C
Supply Ability 300sets/year
Product Details
Product Name Sieve Plate Drilling Machine Working Size 2000*2000mm
Drilling Diameter φ1~φ6 Spindle Rotating Speed 0~10000rpm
Spindle Qty 8pcs Spindle Power 6kW*8
Axes 3 Axes Outline Dimension 3000*3000*2150mm
Voltage 380V Spindle Stroke 210mm
You can tick the products you need and communicate with us in the message board.
Name Specification
Color Black & White
Controlling System Language English (Option: Russia)
Leave a Message
Name Specification
Product Description

Automatic PZS2020 3030 Spindle BT40 Metal CNC Drilling Machine For Sieve Plate



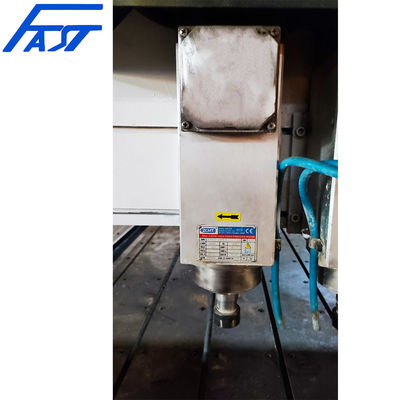

Automatic PZS2020 3030 Spindle BT40 Metal CNC Drilling Machine For Sieve Plate 0



APPLICATION

This machine is mainly used for drilling and processing filter plates and sieve plates in papermaking, medicine, food, chemical and other industries. Straight holes, step holes, tapered holes and other holes can be processed on single materials and composite materials. It can realize automation, high precision, multiple varieties and mass production.

This machine is specially used for drilling machine for sieve plates. This machine is mainly used for high efficiency drilling of small holes on paper pulp sieve plates (stainless steel). The machine can equip with one or several high-speed drilling spindle.



FEATURES

1. This machine is fully digitally controlled. CNC system controls servo automatically position and feed to ensure the accuracy of the drilling position;

2. High drilling accuracy CNC drilling power head. It is easy to quantify the depth;

3. Linear guide line and ball screw fully protected and not exposed;

4. Circulating cooling device;

5. Automatic lubrication device & Protection device. All moving (rotating) parts are automatically lubricated regularly;

6. Anti rusty stainless steel guardrail around the workbench;

7. Full digital numerical control system control:

-Chip breaking function; Tool lifting chip removal function;

-Automatically converting CAD graphics into processing programs function;

- Adjusting the feed and speed according to different apertures,

-The standard numerical control system adopts the German Siemens numerical control system. It is equipped with a USB interface and an LCD liquid crystal display. The operation interface has functions such as human-machine dialogue, error compensation, and automatic alarm.

-Hole position preview and re-inspection function.



COMPOSITION

Fixed bed worktable Movable gantry
Vertical sliding plate Drilling heads
Cooling system Automatic lubrication system
Controlling system


TECHNICAL DATA

Model PZS1212 PZS1616 PZS2020 PZS2524
Max. Workpiece Dimension (mm) 1200*1200 1600*1600 2000*2000 2500*2400
Distance between the bottom of the spindle to work table (mm)

60~280



100~320 100~400 100~400
Range of Drilling Diameter Φ1.5~Φ5 Φ2~Φ10 Φ2~Φ10 Φ2~Φ10
Type of Drilling Head Servo motor Drilling head
feeding Speed (mm/min)

50~220 (for common steel)

30~120 (for stainless steel plate)

Quantity of Drilling Motor 1 1 2 2
Drilling Axis 1 OR 2 1 OR 2 2 OR4 2 OR4
Spindle Type ER20

ER20

OR Morse taper 3#

ER25 ER25
Motor power of Drilling Head (kW) 2.2 4 5 5
Max.Rotating Speed of Spindle (r/min) 9800 6000 6000 6000
Vertical Stroke of Z Axis (mm) 220 220 300 300
Z Axis Servo Motor Power (kW) 1.0 1.0 1.0 1.0
Stroke of X Axis (mm) 1200 1600 2000 2500
X Axis Servo Motor Power (kW) 1.0 1.0 1.5 1.5
Stroke of Y Axis (mm) 1200 1600 2000 2400
Y Axis Servo Motor Power (kW) 1.0 1.0 1.0 1.0
Quantity of CNC Axis 3 OR 5 3 OR 5 5 5
Net Weight (kg) 2500 3500 5000 6000

All of these models can be customized according to customer requirements.
