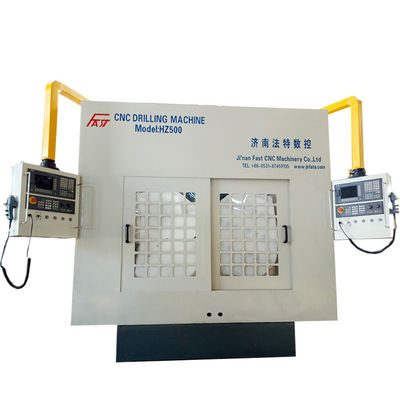

FAST HZ500 Double-Spindle Round Parts Two Station Flange Drilling And Milling Machine For Flange Shaft FLZ500-30-2
|Cnc Or Not||CNC||Color||White|
|Voltage||380V||After-sales Service Provided||Engineers Available To Service Machinery Overseas|
|Warranty||12 Months||Outline Size||About 1800×1360×2340mm|
|Weight||About 3000kg||Tool Cooling System||Mist Cooling System|
|Color||Black & White|
|Controlling System Language||English (Option: Russia）|
FAST HZ500 Two Station Flange Drilling And Milling Machine For Flange Shaft
This machine mainly used for high efficiency drilling of flange, round material and circle parts.
- It has double spindles, double rotation work table flame drilling machine, the high efficiency flange drilling machine.
- Two spindles can drill at the same time, or drill separately.
- It can drill through hole or blind hole. Processing of working is controlled by CNC, which is easy to operate. It can realize automation, high precision, mass production.
- Operator just needs to input numbers of hole and sets diameter of the holes be drilled in the pitch circle, then this machine can operate automatically.
- Very easy to operate, high efficiency, cost worthy machine.
- Linear guide rail and precision ball screw driving
- Machine has high position and reposition accuracy
|Two work tables||Two drilling power heads|
|Automatic chip removal device||Circulating cooling system|
|Pneumatic system||Electrical system|
|Spindle||Spindle Taper||Morse 3#|
|Shift Type||Frequency inverter step less speed change|
|Spindle Feeding Speed||0-4000mm/min step less speed regulating|
|Quantity of CNC Axis||4 Axes|
|Workholding||Clamping Way||Four-jaw self-centering chuck|
|Tool Cooling System||Cooling Method||Mist Cooling System|
|Y and Z axis servo motors||1.2KW×4|
|Rotary shaft servo motor||1.5KW×2|
Accuracy of Machine
|Position Accuracy||≤0.1mm whole length|
|Re-Position Accuracy||≤0.06mm whole length|
|Run Out of Surface And Side of Spindle||≤0.03mm|
|Pressure of Lubrication System||1.0MPa|
|Pressure of Cooling System||0.2MPa|
|Outline Size||L×W×H||About 1800×1360×2340mm|
|Weight||Total Weight||About 3000kg|
|NOTE: Pneumatic system usage:When drilling function provide power,it is cylinder fixed work table. This ensures rotation work table chuck to be in static status.|
