Hot Sale Flange Round Part CNC Double Worktable Drilling Machine With German Siemens System Model FLZ500
Product Details
| Certification | ISO9001 | Condition | New |
|---|---|---|---|
| Cnc Or Not | CNC | Color | White |
| Voltage | 380V | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
| Warranty | 12 Months | Outline Size | About 1800×1360×2340mm |
| Weight | About 3000kg | Tool Cooling System | Mist Cooling System |
Product Description
Round Part CNC Double Worktable Drilling Machine With German Siemens System Model FLZ500
APPLICATION
This machine mainly used for high efficiency drilling of flange, round material and circle parts.
FEATURES
- It has double spindles, double rotation work table flame drilling machine, the high efficiency flange drilling machine.
- Two spindles can drill at the same time, or drill separately.
- It can drill through hole or blind hole. Processing of working is controlled by CNC, which is easy to operate. It can realize automation, high precision, mass production.
- Operator just needs to input numbers of hole and sets diameter of the holes be drilled in the pitch circle, then this machine can operate automatically.
- Very easy to operate, high efficiency, cost worthy machine.
- Linear guide rail and precision ball screw driving
- Machine has high position and reposition accuracy
MAIN COMPOSITION
| Two work tables | Two drilling power heads |
| Automatic chip removal device | Circulating cooling system |
| Pneumatic system | Electrical system |
TECHNICAL DATA
| Item | Name | Specifications |
| Workpiece | Thickness | Max. 100mm |
| Diameter Size | ≤φ500mm | |
| Spindle | Spindle Taper | Morse 3# |
| Drilling Diameter | Φ6~30mm | |
| Shift Type | Frequency inverter step less speed change | |
| Rotate Speed | 30－1000r/min | |
| Spindle Stroke | 300mm | |
| Spindle Feeding Speed | 0-4000mm/min step less speed regulating | |
| Quantity of CNC Axis | 4 Axes | |
| Workholding | Clamping Way | Four-jaw self-centering chuck |
| Tool Cooling System | Cooling Method | Mist Cooling System |
| Air pressure | Pressure | 0.6MPa(6kgf/cm2) |
| Motor | Spindle | 4 KW×2 |
| Y and Z axis servo motors | 1.2KW×4 | |
| Rotary shaft servo motor | 1.5KW×2 | |
|
Accuracy of Machine |
Position Accuracy | ≤0.1mm whole length |
| Re-Position Accuracy | ≤0.06mm whole length | |
| Run Out of Surface And Side of Spindle | ≤0.03mm | |
| Pressure of Lubrication System | 1.0MPa | |
| Pressure of Cooling System | 0.2MPa | |
| Outline Size | L×W×H | About 1800×1360×2340mm |
| Weight | Total Weight | About 3000kg |
| NOTE: Pneumatic system usage:When drilling function provide power,it is cylinder fixed work table. This ensures rotation work table chuck to be in static status. | ||

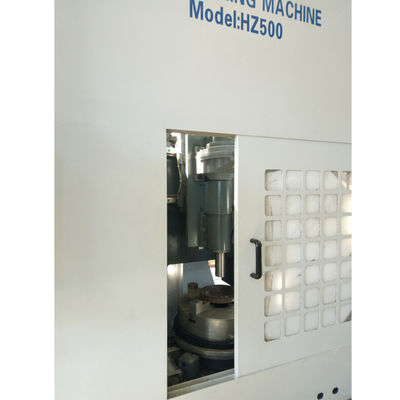

DETAIL IMAGES
