HB-3000T Touch-Screen Brinell Hardness Tester
Product Details
Condition | New | Warranty | 1 Year |
---|---|---|---|
Customized Support | OEM | Brand Name | Marxtest |
Power | Electronic | Test Force | 62.5kgf 100kgf 125kgf 187.5kgf...3000kgf |
Test Force Accuracy | 0.5% - 1% | Range | 3.18-653 HBW |
MOQ | 1 Set | Dwell Time | 0-99 S |
Product Description

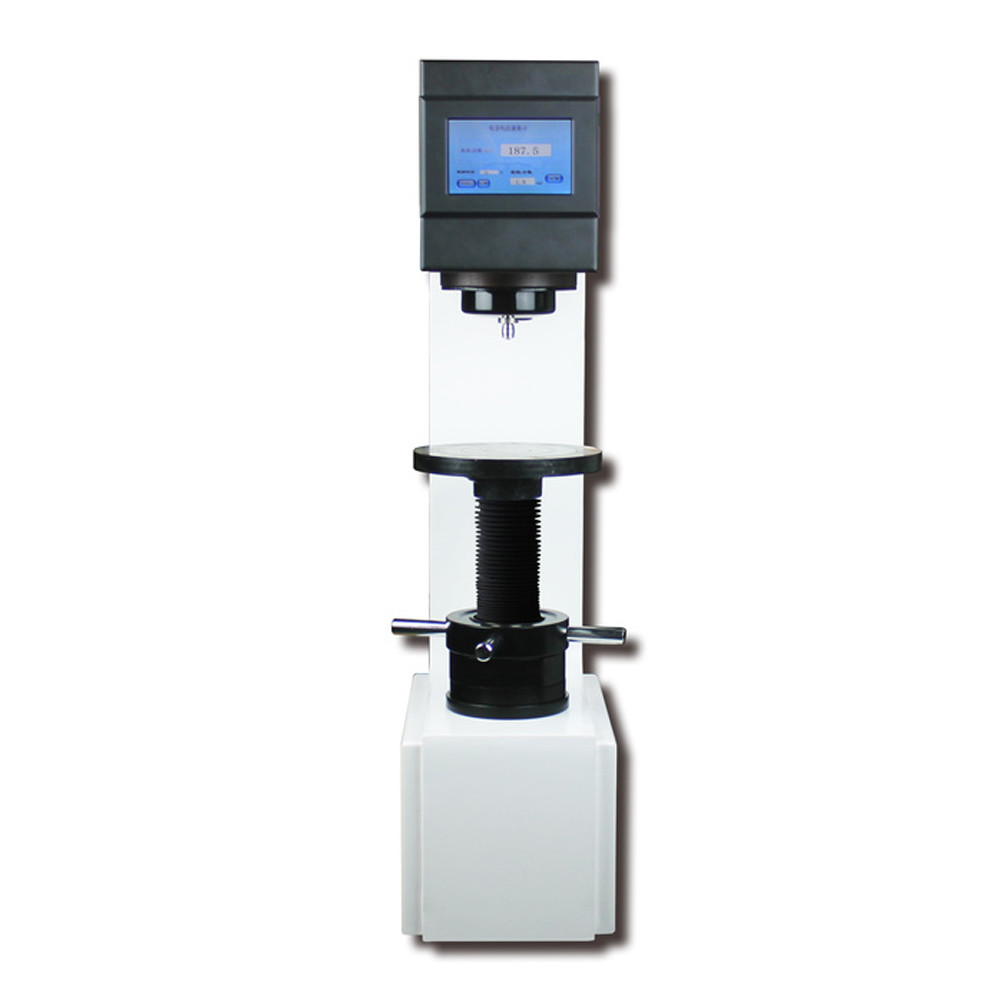

HB-3000T Touch-Screen Brinell Hardness Tester
Application
This Brinell series hardness testers are mainly for the hardness testing of Non-quenched steel, cast iron, non-ferrous metal, soft bearing alloy materials.
Technical Parameters
Model
|
HB-3000T
|
Test force
|
62.5 Kgf (612.9N),100 Kgf (980.7N),125 Kgf (1226N),
187.5 Kgf (1839N),250 Kgf (2452N),500 Kgf (4903N),
750 Kgf (7355N),1000 Kgf (9807N),1500 Kgf (14710N),
3000 Kgf (29420N)
|
Carried standard
|
BSEN 6506, ISO 6506, ASTM E10, GB/T231
|
Test force accuracy
|
62.5~250Kgf≤1% 500~3000Kgf≤0.5%
|
Measurement device resolution
|
0.01mm
|
Hardness resolution
|
0.1HBW
|
Hardness measurement range
|
3.18-653HBW
|
Dwell time
|
0~99S
|
Measurement eyepiece magnification
|
20x
|
Max height of specimen
|
230mm
|
Distance for indenter center to the out wall
|
155mm
|
The Min reading of the micro hub wheel
|
0.01mm
|
Dimension
|
550×210×800mm
|
Weight
|
110kg
|
Power supply
|
AC220+5%,50~60Hz
|
