Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200

I'm Online Chat Now
Certification
China Jinan FAST CNC Machinery Co., Ltd certification
China Jinan FAST CNC Machinery Co., Ltd certification
To:Jinan FAST CNC Machinery PLC Dear Sir, With the letter we would like to thank for your cooperation in the successful installation, testing and commissioning of High Speed CNC Drill Of First in its kind Ethiopia , that would enable us do many works especially sugar product tube plate holes of various deameters and thickness. ... With Regards

—— Mr. Begall

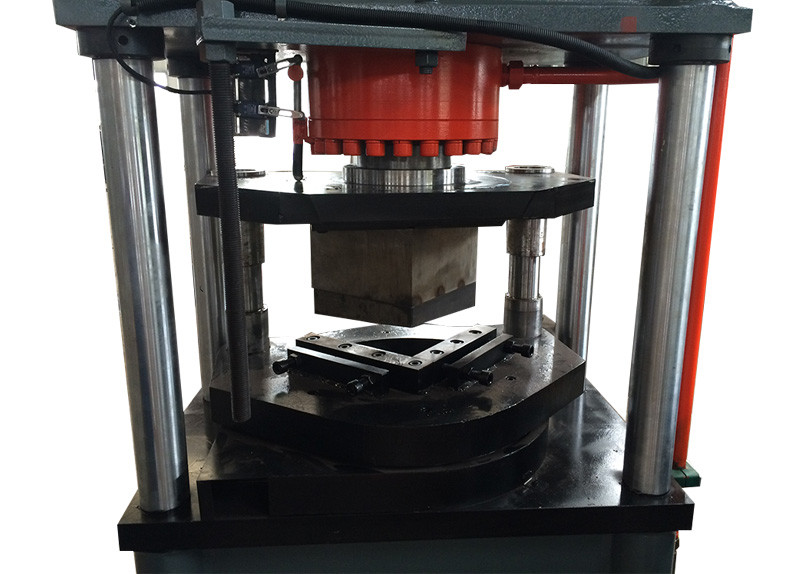

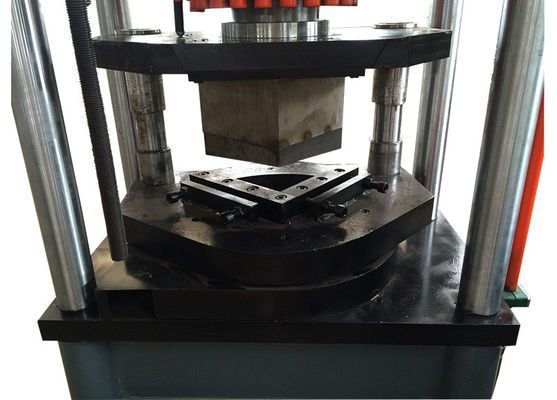

Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200

Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200
Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200 Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200 Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200 Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200 Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200 Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200

Large Image :  Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200 Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: QJ200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD15000~20000/set
Packaging Details: plywood pallet
Delivery Time: 40days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300sets/year
Detailed Product Description
Condition: New Warranty: 12 Months
Port: Qingdao Port MOQ: 1 SET
Service: 24 Hours Online Services Voltage: 380V
Certificate: ISO9001 CNC Or Not: CNC
Manufacture: OEM ODM Acceptable Function: Cutting Corner Of Angles





Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200



APPLICATION

The machine is used for cutting corner of angles. By changing the mold, this machine can also do marking function. This machine is used in steel tower industry.



ADVANTAGES

● The machine is with opening C-type structure.

● Its cutting mold is rectangular double-blade mode.

● Multi-directions rotational corner cutting mold can cut out different angle of angles.

● Only need to adjust rotation die-carrier, no need to rotate the angles. so corner cutting with little error only need

● Small working area with little error.

● By changing the mold, this machine can also do marking function.



TECHNICAL DATA

Model QJ140 QJ160 QJ200 (Four Column)
Nominal Force (kN) 1000 1400 1600
Stoke of Oil Cylinder (mm) 50 50 80
Times of Stoke (Time/min) 25 25 20
Motor Power (kW) 15 15 15/22
Scope of Angles (mm) 40*40*3~140*140*12 40*40*3~160*160*16 40*40*3~200*200*16
Rotary Angles of Corner Cutting Mold ±360° Electrical OR Manual
Overall Dimension of Cutting mold(mm) 650*650*500 700*700*500 830*700*600
Overall Dimension of Machine (mm) 1270*1020*1800 1300*1020*1880 1370*1120*1900

All of these models can be customized according to customer requirements.



DETAIL IMAGES

Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200 (Patent)

Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200 (Patent)

Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200 (Patent)

Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200 (Patent)

Hydraulic Notching/Marking Machine For Angles Electrical Rotary QJ200 (Patent)
