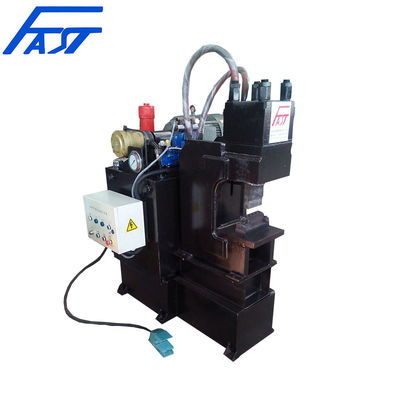

Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70

I'm Online Chat Now
Certification
China Jinan FAST CNC Machinery Co., Ltd certification
China Jinan FAST CNC Machinery Co., Ltd certification
To:Jinan FAST CNC Machinery PLC Dear Sir, With the letter we would like to thank for your cooperation in the successful installation, testing and commissioning of High Speed CNC Drill Of First in its kind Ethiopia , that would enable us do many works especially sugar product tube plate holes of various deameters and thickness. ... With Regards

—— Mr. Begall

Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70

Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70

Large Image :  Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: DZ70
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD 6500/set
Packaging Details: FILM;plywood pallet
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300sets/year
Detailed Product Description
Condition: New Warranty: 12 Months
Port: Qingdao Port MOQ: 1 SET
Service: 24 Hours Online Services Voltage: 380V
Certificate: ISO9001 CNC Or Not: CNC
Manufacture: OEM ODM Acceptable Function: Stamping Marking

Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70

Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 0
APPLICATION
The machine is used for marking for angles and metal plates in the field of power and telecommunication.

FEATURES

  • This machine is a hydraulic marking machine for angle or plates.
  • The plate-marking machine is no need to prepare any special basis. The customer can put it anywhere according to the customer requirement.
  • This machine processes independent hydraulic power system and electric controlling system.
  • The hydraulic system adopts electromagnetic valve to reverse.
  • FAST also has other model for the marking machine, which is CNC Model M50 CNC Marking Machine.


TECHNICAL DATA

Model DZ70 DZ100 DZ160
Marking Force (kN) 700 1000 1600
Marking Times (times/mn) 25
Marking Stroke (mm) 45 50
Marking Character Groups 1
Character No. 12 18
Character Size (mm) 10*14*20 (By Customers’ Request)
Power of Motor 15
Weight of Machine 800 1100 2200

All of these models can be customized according to customer requirements.
DETAIL IMAGES
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 1
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 2
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 3
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 4
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 5
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 6
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 7


Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 8

Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 9
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 10
WHY CHOOSE US
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 11
COMPANY PROFILE
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 12
WORKSHOP
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 13
CUSTOMER VISIT
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 14
FAQ
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 15
CERTIFICATE
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 16
PACKING AND SHIPPING
Hydraulic CNC Connection Iron Steel Plate Hole Punching Marking Machine Model DZ70 17
