Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.

  • Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.
  • Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.
  • Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.
  • Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces.
Place of Origin China
Brand Name FAST
Certification ISO9001
Model Number HZ900
Minimum Order Quantity 1 set
Price USD 10000~20000/set
Packaging Details Film；plywood wooden cases
Delivery Time 40~60 days
Payment Terms L/C, T/T,
Supply Ability 300sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New CNC Or Not CNC
Voltage 380V Min. Order 1 Set
Port Qingdao Port Max. Drilling Diameter (mm) φ30
Morse Taper Morse #3 Infeeding Length(mm) 320
Rotation Speed Of Spindle (rpm) 100~760 Processing Position Accuracy Circular Direction: ±30
Leave a Message
Product Description

 Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces

APPLICATION
The machine is used for drilling on ring workpieces.

FEATURES

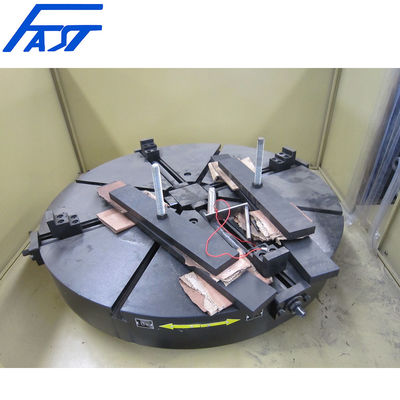

  • This machine has central chucks on work table in horizon position. The chuck has four claws fixed manually.
  • Servomotor.
  • CNC controlling system.
  • Cooling liquid automatic circulation.
  • Only inputting the dimension of the workpiece. It can be used repeatedly.


TECHNICAL DATA

Model HZ900


Workpiece Dimension (mm)

 Inner Diameter: φ280~φ880
Outer Diameter: φ300~φ900
Height: ≤400
Max. Drilling Diameter (mm) φ30
Morse Taper Morse #3
Infeeding Length(mm) 320
Rotation Speed of Spindle (rpm) 100~760
Drilling Speed (mm/min) 30~160
Frequency Converter Stepless Speed Adjustable.
Spindle Power (kW) 3
Infeeding Servo Motor Power (kW) 1.5
Rotation Servo Motor Power (kW) 1.5
Processing Position Accuracy Circular Direction: ±30


★ All of these models can be customized according to customer requirements.

DETAIL IMAGES

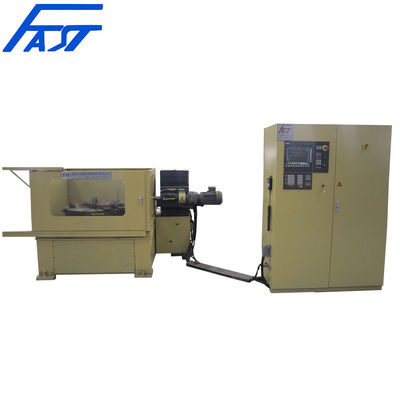

Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces. 0
Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces. 1
Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces. 2Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces. 3

Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces. 4
Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces. 5
