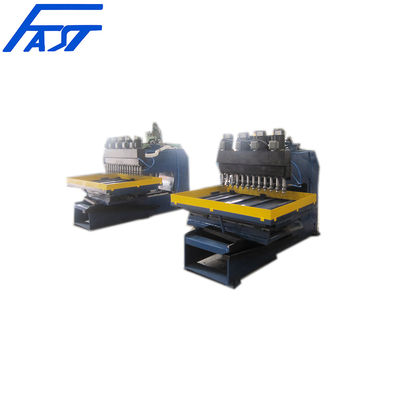

Sieve Plates CNC Multi-Spindle Drilling Machine For Plates Filter Plates Model PZS1208-12

Sieve Plates CNC Multi-Spindle Drilling Machine For Plates Filter Plates Model PZS1208-12
Sieve Plates CNC Multi-Spindle Drilling Machine For Plates Filter Plates Model PZS1208-12 Sieve Plates CNC Multi-Spindle Drilling Machine For Plates Filter Plates Model PZS1208-12 Sieve Plates CNC Multi-Spindle Drilling Machine For Plates Filter Plates Model PZS1208-12 Sieve Plates CNC Multi-Spindle Drilling Machine For Plates Filter Plates Model PZS1208-12 Sieve Plates CNC Multi-Spindle Drilling Machine For Plates Filter Plates Model PZS1208-12 Sieve Plates CNC Multi-Spindle Drilling Machine For Plates Filter Plates Model PZS1208-12

Large Image :  Sieve Plates CNC Multi-Spindle Drilling Machine For Plates Filter Plates Model PZS1208-12 Get Best Price

Product Details:
Place of Origin: China
Brand Name: FAST
Certification: ISO9001
Model Number: PZS1208-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 10000~20000 / set
Packaging Details: FILM
Delivery Time: 40days
Payment Terms: L/C, T/T
Supply Ability: 300sets/year
Detailed Product Description
Material: Sieve Plate Function: Drilling
Max. Workpiece Dimension (mm): 1200*800 Range Of Drilling Diameter: Φ3~Φ10
Type Of Drilling Head: Servo Motor Drilling Head Drilling Speed (mm/min): 50~220 (for Common Steel) 30~120 (for Stainless Steel Plate)
Drilling Axis: 12 Morse Taper: 3#
Motor Power Of Drilling Head (kW): 2.2 Net Weight (kg): 3000

Sieve Plates CNC Multi-Spindle Drilling Machine For Plates Filter Plates Model PZS1208-12

Sieve Plates CNC Multi-Spindle Drilling Machine For Plates Filter Plates Model PZS1208-12 0

APPLICATION

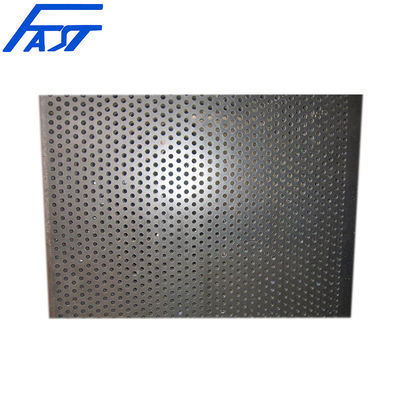

This machine is mainly used for drilling and processing filter plates and sieve plates in papermaking industry, medicine industry, food industry, chemical industry,etc. Straight holes, step holes, tapered holes and other holes can be processed on single materials and composite materials. It can realize automation, high precision, multiple varieties and mass production.



FEATURES

1. This machine is fully digitally controlled. CNC system controls servo automatically position and feed to ensure the accuracy of the drilling position;

2. High drilling accuracy CNC drilling power head. It is easy to quantify the depth;

3. Linear guide line and ball screw fully protected and not exposed;

4. Circulating cooling device;

5. Automatic lubrication device & Protection device. All moving (rotating) parts

6. Anti rusty stainless steel guardrail around the workbench;

7. Full digital numerical control system control:

-Chip breaking function; Tool lifting chip removal function;

-Automatically converting CAD graphics into processing programs function;

- Adjusting the feed and speed according to different apertures,

-The standard numerical control system adopts the German Siemens numerical control system. It is equipped with a USB interface and an LCD liquid crystal display. The operation interface has functions such as human-machine dialogue, error compensation, and automatic alarm.

-Hole position preview and re-inspection function.



COMPOSITION

Fixed bed worktable Movable gantry
Vertical sliding plate Drilling heads
Cooling system Automatic lubrication system
Controlling system



TECHNICAL DATA

Model PZS1208-12 PZS1508-15
Max. Workpiece Dimension (mm) 1200*800 1500*800
Distance between the bottom of the spindle to work table (mm)

100~320



100~320
Range of Drilling Diameter Φ3~Φ10 Φ3~Φ10
Type of Drilling Head Servo motor Drilling head
Drilling Speed (mm/min)

50~220 (for common steel)

30~120 (for stainless steel plate)

Quantity of Drilling Motor 4 5
Drilling Axis 12 15
Morse Taper 3# 3#
Motor power of Drilling Head (kW) 2.2 2.2
Rotating Speed of Spindle (r/min) 300~2800 300~2800
Vertical Stroke of Z Axis (mm) 220 220
Z Axis Servo Motor Power (kW) 1.0 1.2
Stroke of X Axis (mm) 800 800
X Axis Servo Motor Power (kW) 1.0 1.0
Stroke of Y Axis (mm) 1200 1500
Y Axis Servo Motor Power (kW) 1.0 1.0
Quantity of CNC Axis 3 3
Net Weight (kg) 3000 3500

All of these models can be customized according to customer requirements.
